R14141 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

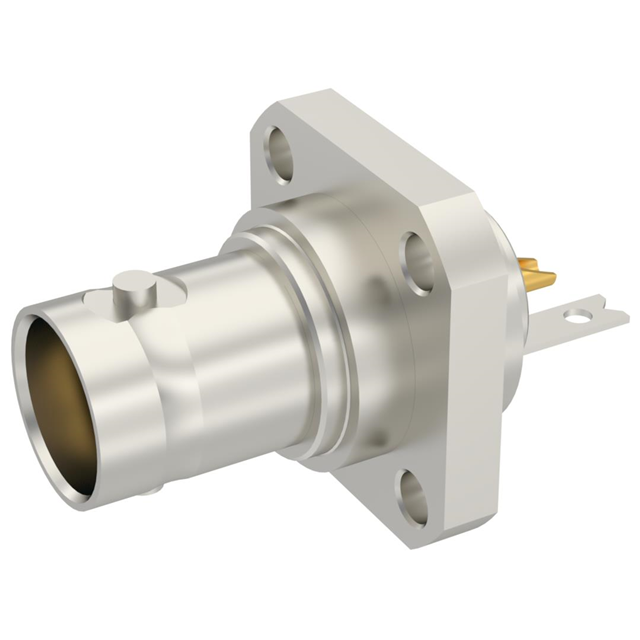

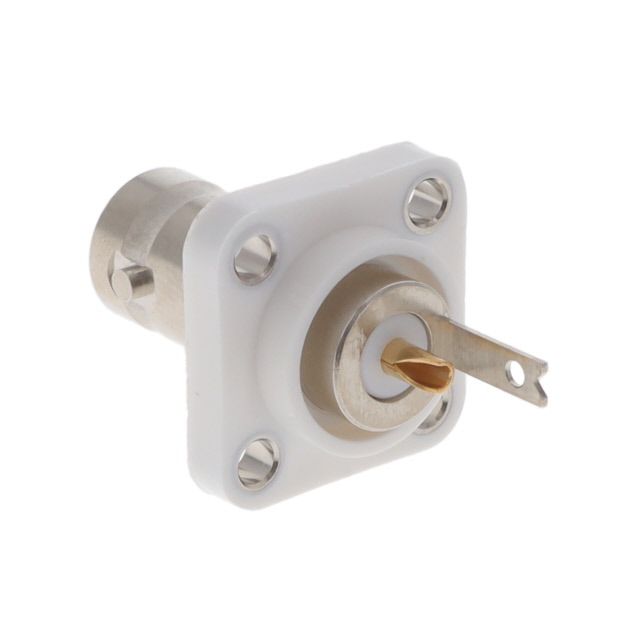

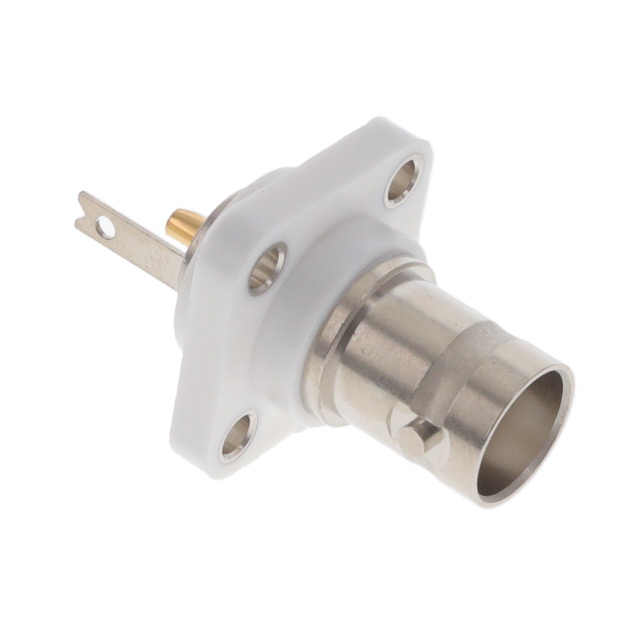

BNC / INSULATED SQUARE FLANGE JA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Body Finish | Mating Cycles | Body Material | Center Contact Plating | Housing Color | Connector Type | Contact Termination | Mounting Feature | Connector Style | Number of Ports | Impedance | Frequency - Max [Max] | Shield Termination | Center Contact Material | Fastening Type | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Nickel | 500 | Brass | Gold | Silver | Female Socket Jack | Solder Cup | Flange | BNC | 1 | 50 Ohms | 4 GHz | Solder | Beryllium Copper | Bayonet Lock | Panel Mount | Extended Insulation |
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Nickel | 500 | Brass | Gold | Silver | Female Socket Jack | Solder Cup | Flange | BNC | 1 | 50 Ohms | 4 GHz | Solder | Beryllium Copper | Bayonet Lock | Panel Mount | Extended Insulation |
