316-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

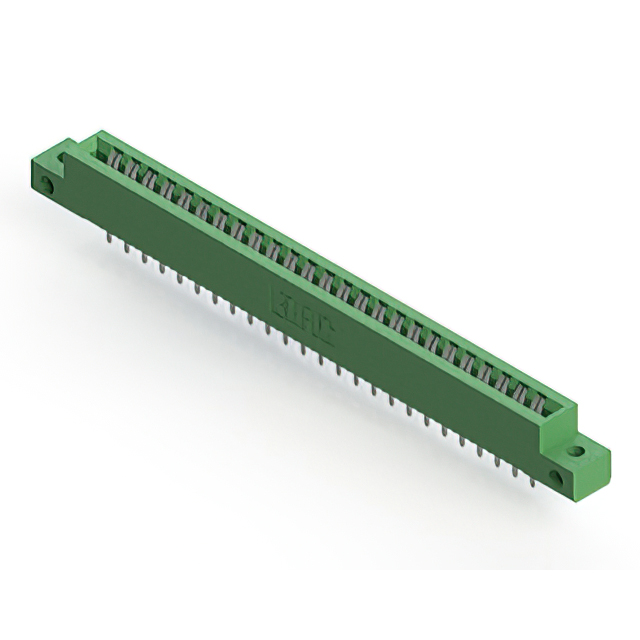

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 25 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows | Number of Positions | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Card Thickness [Max] | Card Thickness [Min] | Read Out | Number of Rows [custom] | Contact Finish | Termination | Mounting Type | Card Type | Color | Number of Positions/Bay/Row | Contact Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Tin | Solder | Panel Mount Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Tin | Solder | Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | ||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | Flush Mount M3 Threaded Insert Top Opening | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Gold | Solder | Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Tin | Solder Eyelet(s) | Panel Mount | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Gold | Solder Eyelet(s) | Panel Mount | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Tin | Solder | Panel Mount Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Tin | Solder | Panel Mount Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Tin | Solder Eyelet(s) | Panel Mount | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | 4-40 Flush Mount Threaded Insert Top Opening | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Gold | Solder | Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 50 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 2 | Gold | Solder | Through Hole | Non Specified - Dual Edge | Green | 25 | Cantilever | Copper Alloy | -40 C | 105 ░C | 0.25 Ám | 10 Áin |
