J-7 Series

Catalog

SWITCH SNAP ACTION SPDT 7A 250V

Part	Mechanical Life	Switch Function	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Type	Operating Position	Operating Position	Pretravel	Pretravel	Circuit	Mounting Type	Ingress Protection	Overtravel	Overtravel	Voltage Rating - AC	Termination Style	Electrical Life	Release Force
Omron Electronics Inc-EMC Div J-7Y	10000000 Cycles	On-Mom	0.15 mm	0.006 in	80 C	-10 °C	140 gf	Round (Pin Plunger)	8.1 mm	0.319 in	0.024 in	0.6 mm	SPDT	Chassis Mount	IP40	0.004 in	0.1 mm	250 V	Solder Turret	50000 Cycles	28 gf

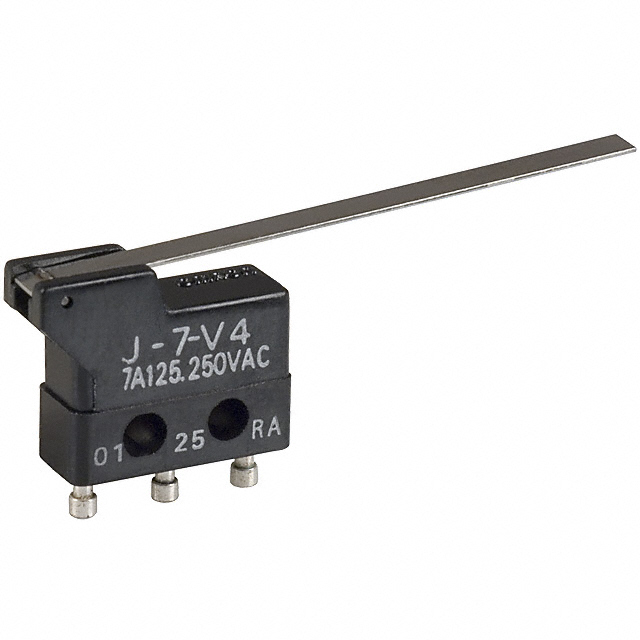

Omron Electronics Inc-EMC Div J-7-V4	10000000 Cycles	On-Mom	1.2 mm	0.047 in	80 C	-10 °C	20 gf	Lever Straight	8.3 mm	0.328 "	0.178 in	4.5 mm	SPDT	Chassis Mount	IP40	0.03 in	0.76 mm	250 V	Solder Turret	50000 Cycles	3.059 gf
