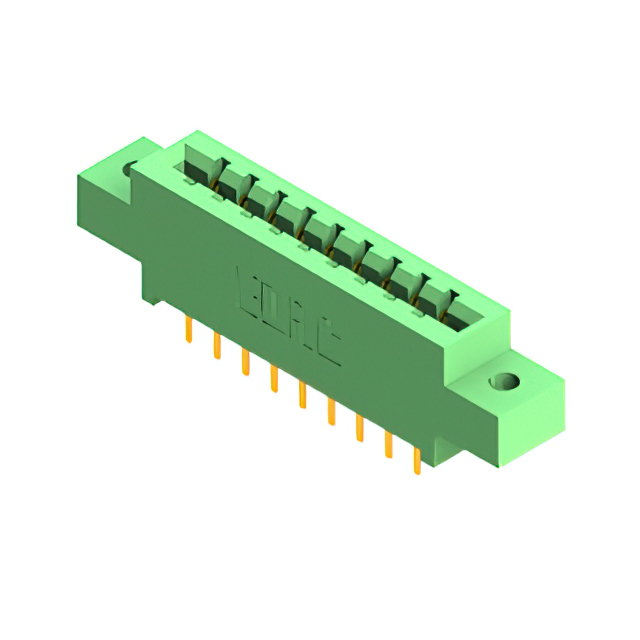

837-018 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 18POS 0.156
...
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions/Bay/Row | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Contact Type | Pitch | Pitch | Number of Rows [custom] | Contact Finish | Color | Number of Positions | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 9 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Female | Dual | 0.25 Ám | 10 Áin | Solder | Right Angle Through Hole | Cantilever | 3.96 mm | 0.156 in | 2 | Gold | Green | 18 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 9 | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Female | Dual | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Through Hole | Cantilever | 3.96 mm | 0.156 in | 2 | Gold | Green | 18 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Female | Single | 0.25 Ám | 10 Áin | Solder | Through Hole | Cantilever | 3.96 mm | 0.156 in | Gold | Green | 18 | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 18 | 1 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 9 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Female | Dual | 0.25 Ám | 10 Áin | Solder | Right Angle Through Hole | Cantilever | 3.96 mm | 0.156 in | 2 | Gold | Green | 18 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Female | Single | 0.25 Ám | 10 Áin | Solder | Through Hole | Cantilever | 3.96 mm | 0.156 in | Gold | Green | 18 | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 18 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 9 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Female | Dual | 0.25 Ám | 10 Áin | Solder | Right Angle Through Hole | Cantilever | 3.96 mm | 0.156 in | 2 | Gold | Green | 18 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 9 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Female | Dual | 0.25 Ám | 10 Áin | Wire Wrap | Through Hole | Cantilever | 3.96 mm | 0.156 in | 2 | Gold | Green | 18 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 9 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Female | Dual | 0.25 Ám | 10 Áin | Solder | Right Angle Through Hole | Cantilever | 3.96 mm | 0.156 in | 2 | Gold | Green | 18 | Non Specified - Dual Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Copper Alloy | Female | Single | 0.25 Ám | 10 Áin | Solder | Through Hole | Cantilever | 3.96 mm | 0.156 in | Gold | Green | 18 | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 18 | 1 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Female | Single | 0.25 Ám | 10 Áin | Solder | Through Hole | Cantilever | 3.96 mm | 0.156 in | Gold | Green | 18 | Non Specified - Single Edge | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | 18 | 1 |
