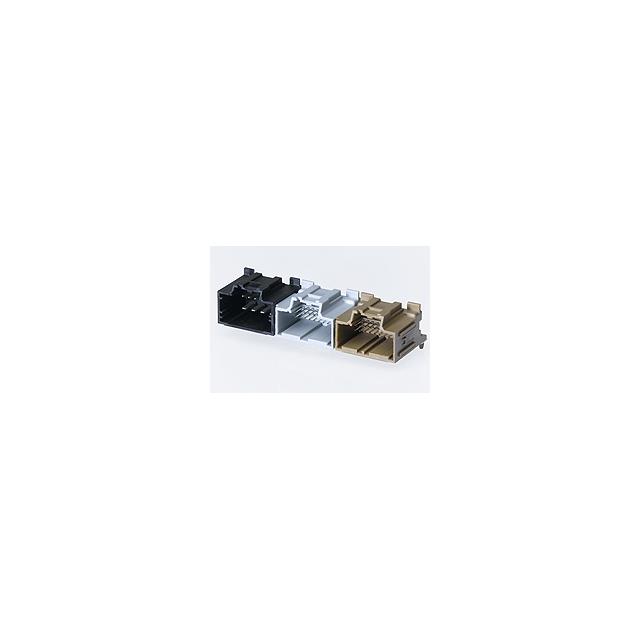

Stac64 3 Bay Right-Angle Headers, 50 Circuits, Bay A 10 Circuit Power Header, Polarization A, Black; Bay B 20 Circuit Signal Header, Polarization B, Gray; Bay C 20 Circuit Signal Header, Polarization C, Brown; Tray
Stac64 3 Bay Right-Angle Headers, 50 Circuits, Bay A 10 Circuit Power Header, Polarization A, Black; Bay B 20 Circuit Signal Header, Polarization B, Gray; Bay C 20 Circuit Signal Header, Polarization C, Brown; Tray
Stac64 3 Bay Right-Angle Headers, 50 Circuits, Bay A 10 Circuit Power Header, Polarization A, Black; Bay B 20 Circuit Signal Header, Polarization B, Gray; Bay C 20 Circuit Signal Header, Polarization C, Brown; Tray
| Part | Fastening Type | Contact Material | Style | Contact Type | Contact Length - Post | Contact Length - Post | Insulation Material | Material Flammability Rating | Contact Shape | Termination | Contact Finish - Post | Number of Positions Loaded | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Shrouding | Insulation Height | Insulation Height | Number of Rows | Insulation Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||||||||
 Molex | Latch Holder | Copper Alloy | Board to Cable/Wire | Male Pin | 0.118 in | 3 mm | Thermoplastic | UL94 V-0 | Square | Solder | Tin | All | Header | -40 °C | 105 ░C | 40 | Board Guide | 2.54 mm | 0.1 in | Shrouded - 4 Wall | 22.05 mm | 0.868 in | 2 | Black Gray | Through Hole Right Angle |
 Molex | |||||||||||||||||||||||||
 Molex | Latch Holder | Copper Alloy | Board to Cable/Wire | Male Pin | 0.118 in | 3 mm | Thermoplastic | UL94 V-0 | Square | Solder | Tin | All | Header | -40 °C | 105 ░C | Board Guide | 2.54 mm | 0.1 in | Shrouded - 4 Wall | 22.05 mm | 0.868 in | 2 | Black Gray | Through Hole Right Angle |
