SURFACE MOUNT SWITCHING DIODE ARRAY
SURFACE MOUNT SWITCHING DIODE ARRAY
| Part | Voltage - Forward (Vf) (Max) @ If [Max] | Diode Configuration | Mounting Type | Current - Reverse Leakage @ Vr | Speed | Speed | Technology | Package / Case | Current - Average Rectified (Io) (per Diode) | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Supplier Device Package | Voltage - DC Reverse (Vr) (Max) [Max] | Reverse Recovery Time (trr) | Qualification | Voltage - Forward (Vf) (Max) @ If | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Diodes Inc | |||||||||||||||||

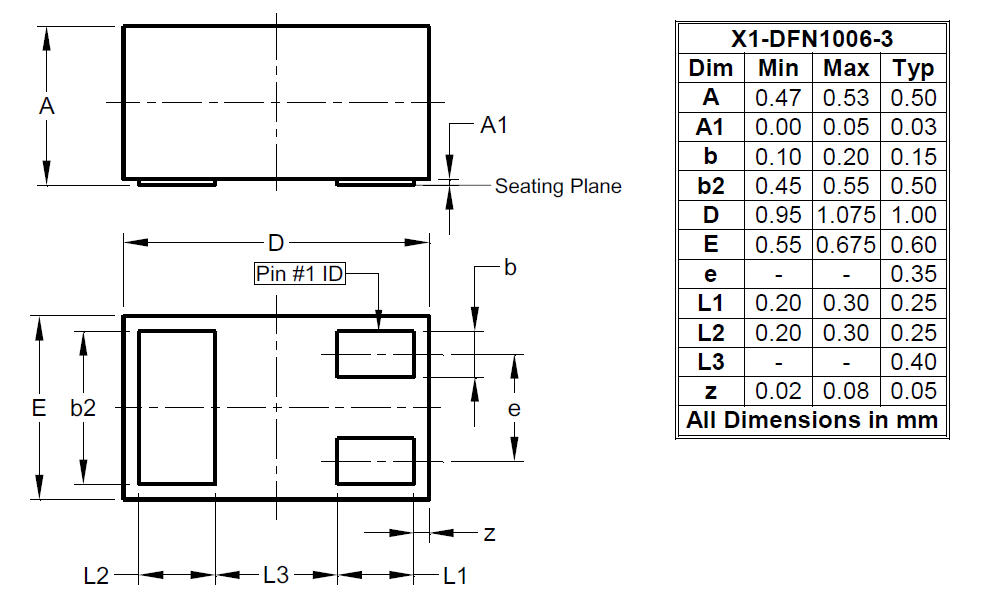

 Diodes Inc | 1.25 V | 1 Pair Common Cathode | Surface Mount | 2.5 µA | Any Speed | 200 mA | Standard | 3-UFDFN | 150 mA | 150 °C | -65 C | X1-DFN1006-3 | 75 V | 4 ns | |||
 Diodes Inc | 2 Pair Common Cathode | Surface Mount | 500 nA | Any Speed | 200 mA | Standard | 6-TSSOP SC-88 SOT-363 | 125 mA | 150 °C | -65 C | SOT-363 | 100 V | 4 ns | AEC-Q101 | 1 V | Automotive | |
 Diodes Inc | 1.25 V | 2 Pair Common Cathode | Surface Mount | 2.5 µA | Any Speed | 200 mA | Standard | 6-TSSOP SC-88 SOT-363 | 150 mA | 150 °C | -65 C | SOT-363 | 75 V | 4 ns | |||
 Diodes Inc | 1.25 V | 2 Pair Common Cathode | Surface Mount | 2.5 µA | Any Speed | 200 mA | Standard | SOT-563 SOT-666 | 150 mA | 150 °C | -65 C | SOT-563 | 75 V | 4 ns | |||
Diodes Inc | |||||||||||||||||
 Diodes Inc | 1.25 V | 1 Pair Common Cathode | Surface Mount | 2.5 µA | Any Speed | 200 mA | Standard | SC-70 SOT-323 | 150 mA | 150 °C | -55 °C | SOT-323 | 75 V | 4 ns | |||
Diodes Inc | 1.25 V | 1 Pair Common Cathode | Surface Mount | 2.5 µA | Any Speed | 200 mA | Standard | SC-59 SOT-23-3 TO-236-3 | 150 mA | 150 °C | -65 C | SOT-23-3 | 75 V | 4 ns |
