ED555 Series

Catalog

TERM BLK 4POS SIDE ENT 3.5MM PCB

Part	Housing Material	Contact Material - Plating	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Current	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Pitch	Pitch	Color	Mounting Type	Mating Orientation	Wire Termination	Voltage	Positions Per Level [custom]

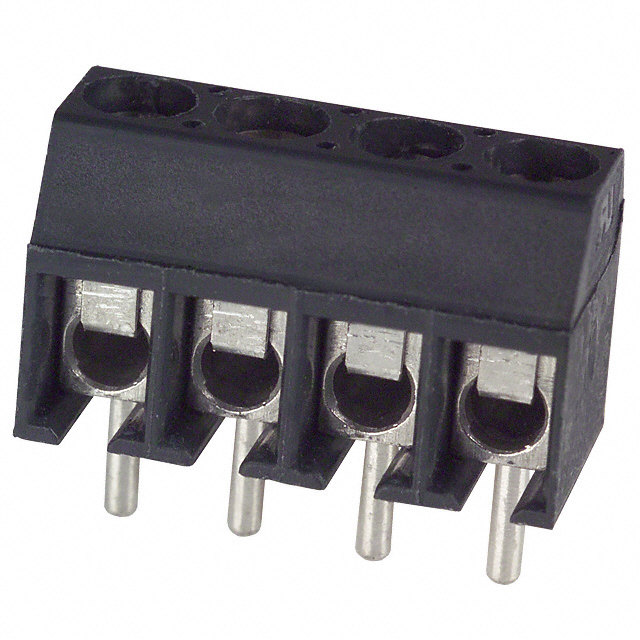

On Shore Technology Inc. ED555/4DS	Polyamide (PA) Nylon	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-40 C	105 ░C	M2	6 A	1	28 AWG	16 AWG	4	3.5 mm	0.138 "	Gray	Through Hole	Horizontal with Board	Screw - Leaf Spring Wire Guard	150 V

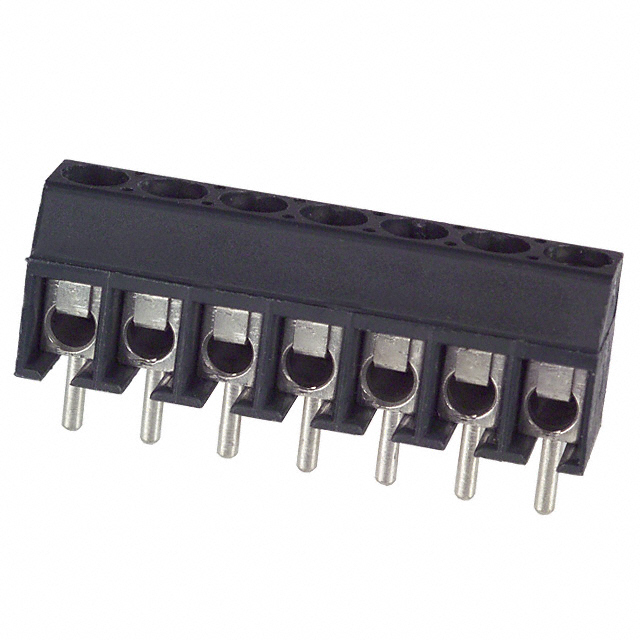

On Shore Technology Inc. ED555/7DS	Polyamide (PA) Nylon	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-40 C	105 ░C	M2	6 A	1	28 AWG	16 AWG		3.5 mm	0.138 "	Gray	Through Hole	Horizontal with Board	Screw - Leaf Spring Wire Guard	150 V	7

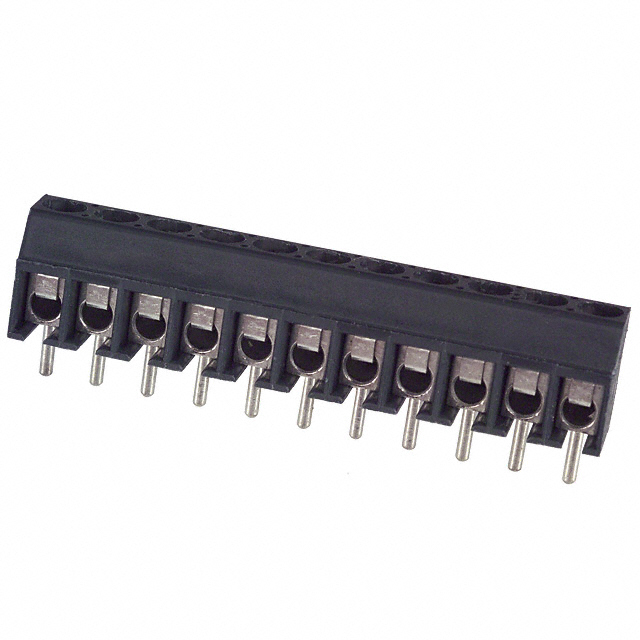

On Shore Technology Inc. ED555/11DS	Polyamide (PA) Nylon	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-40 C	105 ░C	M2	6 A	1	28 AWG	16 AWG	11	3.5 mm	0.138 "	Gray	Through Hole	Horizontal with Board	Screw - Leaf Spring Wire Guard	150 V

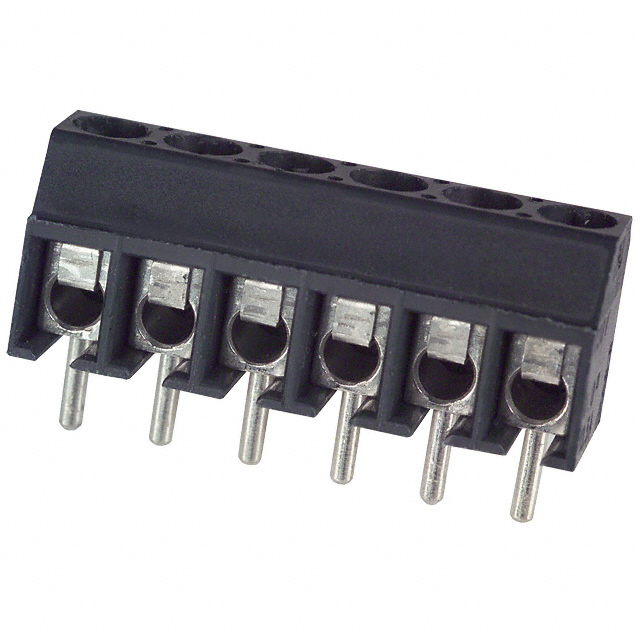

On Shore Technology Inc. ED555/6DS	Polyamide (PA) Nylon	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-40 C	105 ░C	M2	6 A	1	28 AWG	16 AWG	6	3.5 mm	0.138 "	Gray	Through Hole	Horizontal with Board	Screw - Leaf Spring Wire Guard	150 V

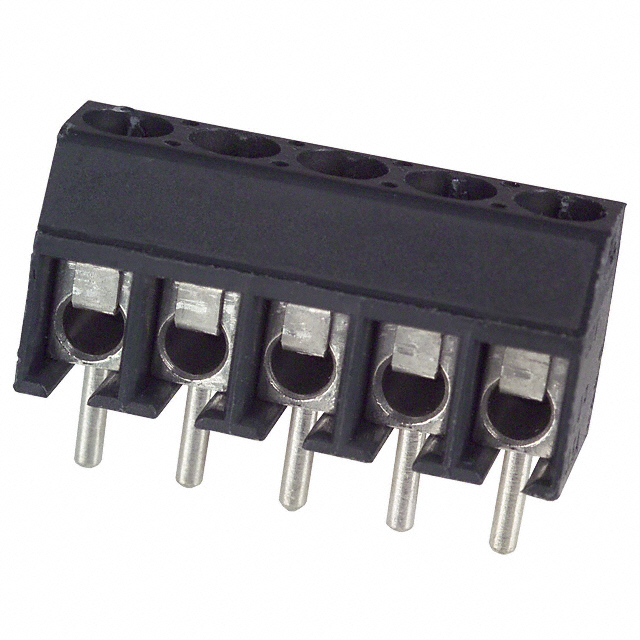

On Shore Technology Inc. ED555/5DS	Polyamide (PA) Nylon	Brass	Stainless Steel	3.5 Lb-In	0.4 Nm	-40 C	105 ░C	M2	6 A	1	28 AWG	16 AWG	5	3.5 mm	0.138 "	Gray	Through Hole	Horizontal with Board	Screw - Leaf Spring Wire Guard	150 V
