1735446 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
BOARD CONNECTOR, 11 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, NATURAL INSULATOR
| Part | Contact Length - Post [x] | Contact Length - Post [x] | Style | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Material | Mounting Type | Fastening Type | Number of Rows | Termination | Insulation Height | Insulation Height | Contact Finish - Post | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions | Applications | Shrouding | Contact Material | Number of Positions Loaded | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Shape | Voltage Rating | Current Rating (Amps) | Insulation Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

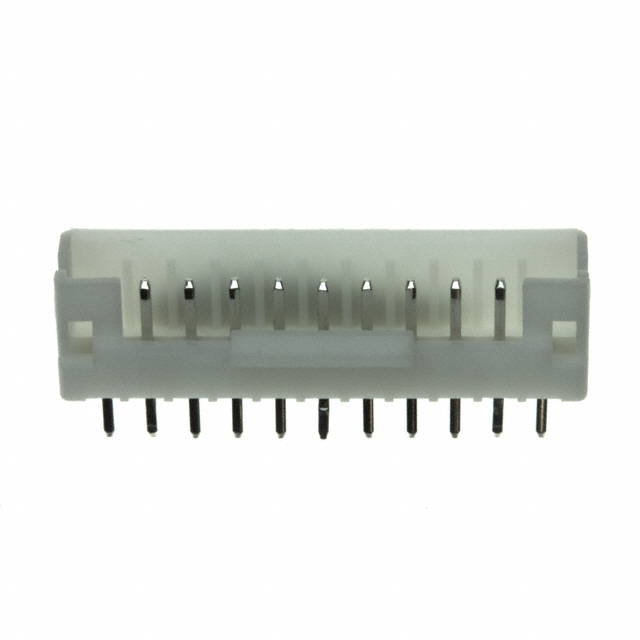

 TE Connectivity Raychem Cable Protection | 0.134 in | 3.4 mm | Board to Cable/Wire | 0.079 in | 2 mm | Thermoplastic | Through Hole | Locking Ramp | 1 | Press-Fit Solder | 0.239 in | 6.07 mm | Tin | Male Pin | -25 °C | 85 °C | UL94 V-0 | 11 | Automotive General Purpose Industrial Medical | Shrouded - 3 Wall | Copper Alloy | All | 0.132 in | 3.35 mm | Square | 250 VDC | 3 A | Natural | Header |
TE Connectivity Raychem Cable Protection | 0.134 in | 3.4 mm | Board to Cable/Wire | 0.079 in | 2 mm | Thermoplastic | Through Hole | Locking Ramp | 1 | Press-Fit Solder | 0.239 in | 6.07 mm | Tin | Male Pin | -25 °C | 85 °C | UL94 V-0 | 7 | Automotive General Purpose Industrial Medical | Shrouded - 3 Wall | Copper Alloy | All | 0.132 in | 3.35 mm | Square | 250 VDC | 3 A | Black | Header |

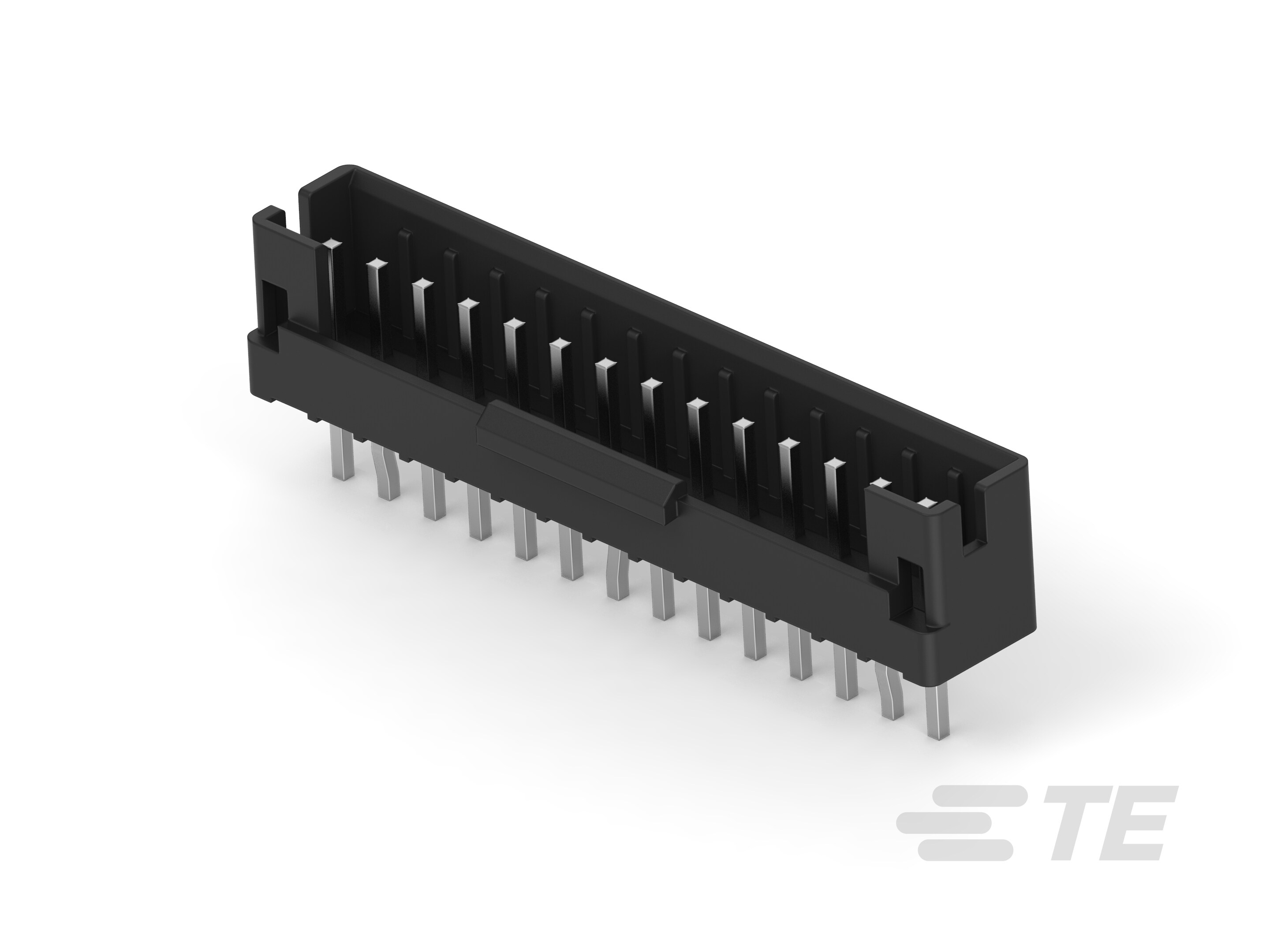

TE Connectivity Raychem Cable Protection | 0.134 in | 3.4 mm | Board to Cable/Wire | 0.079 in | 2 mm | Thermoplastic | Through Hole | Locking Ramp | 1 | Press-Fit Solder | 0.239 in | 6.07 mm | Tin | Male Pin | -25 °C | 85 °C | UL94 V-0 | 14 | Automotive General Purpose Industrial Medical | Shrouded - 3 Wall | Copper Alloy | All | 0.132 in | 3.35 mm | Square | 250 VDC | 3 A | Black | Header |

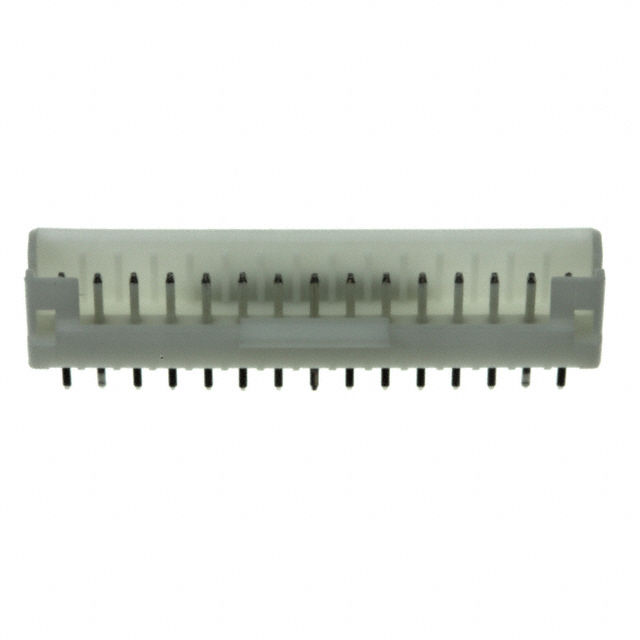

 TE Connectivity Raychem Cable Protection | 0.134 in | 3.4 mm | Board to Cable/Wire | 0.079 in | 2 mm | Thermoplastic | Through Hole | Locking Ramp | 1 | Press-Fit Solder | 0.239 in | 6.07 mm | Tin | Male Pin | -25 °C | 85 °C | UL94 V-0 | 15 | Automotive General Purpose Industrial Medical | Shrouded - 3 Wall | Copper Alloy | All | 0.132 in | 3.35 mm | Square | 250 VDC | 3 A | Natural | Header |

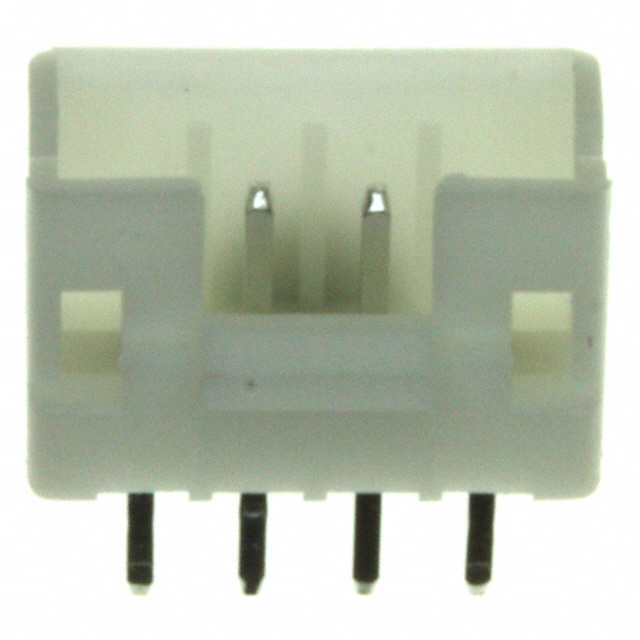

 TE Connectivity Raychem Cable Protection | 0.134 in | 3.4 mm | Board to Cable/Wire | 0.079 in | 2 mm | Thermoplastic | Through Hole | Locking Ramp | 1 | Press-Fit Solder | 0.239 in | 6.07 mm | Tin | Male Pin | -25 °C | 85 °C | UL94 V-0 | 4 | Automotive General Purpose Industrial Medical | Shrouded - 3 Wall | Copper Alloy | All | 0.132 in | 3.35 mm | Square | 250 VDC | 3 A | Natural | Header |
