3106-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

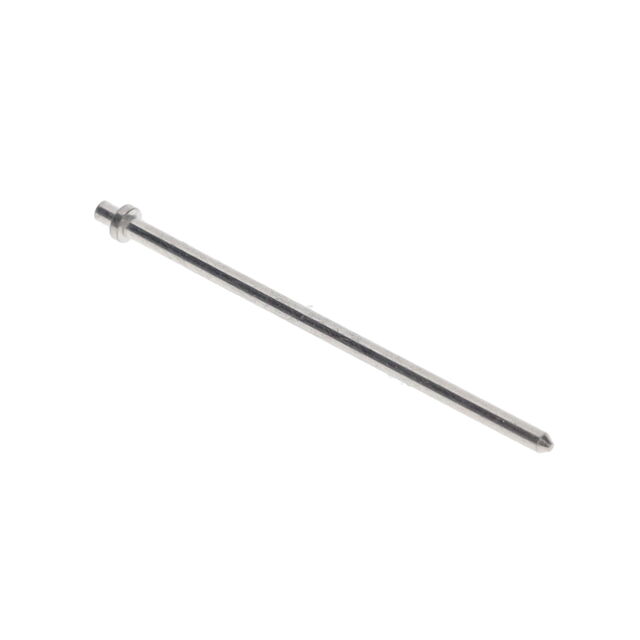

CONN PC PIN CIRC .040DIA GOLD
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Terminal Style | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Board Thickness | Board Thickness | Termination | Contact Material | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | PC Pin | Single End | Non-Insulated | 1.77 mm | 0.07 in | 0.79 mm | 0.031 in | Swage | Brass Alloy | Through Hole | 1.071 in | 27.2 mm | 20 µin | 0.51 µm | 0.051 " | 1.3 mm | 1 in | 25.4 mm | 0.04 in | 1.02 mm | Gold |
Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | PC Pin | Single End | Non-Insulated | 1.77 mm | 0.07 in | 0.79 mm | 0.031 in | Swage | Brass Alloy | Through Hole | 1.071 in | 27.2 mm | 10 Áin | 0.25 Ám | 0.051 " | 1.3 mm | 1 in | 25.4 mm | 0.04 in | 1.02 mm | Gold |
Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | PC Pin | Single End | Non-Insulated | 1.77 mm | 0.07 in | 0.79 mm | 0.031 in | Swage | Brass Alloy | Through Hole | 1.071 in | 27.2 mm | 50 µin | 1.27 µm | 0.051 " | 1.3 mm | 1 in | 25.4 mm | 0.04 in | 1.02 mm | Gold |
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | PC Pin | Single End | Non-Insulated | 1.77 mm | 0.07 in | 0.79 mm | 0.031 in | Swage | Brass Alloy | Through Hole | 1.071 in | 27.2 mm | 200 Áin | 5.08 Ám | 0.051 " | 1.3 mm | 1 in | 25.4 mm | 0.04 in | 1.02 mm | Tin-Lead |
