052745 Series

Manufacturer: Molex

Catalog

CONN FFC/FPC CONNECTOR SKT 15 POS 0.5MM SOLDER RA SMD EASY-ON T/R

Part	Mounting Type	FFC, FCB Thickness	Termination	Mating Cycles	Cable End Type	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Housing Material	Locking Feature	Features	Connector/Contact Type	Number of Positions	Voltage Rating	Contact Material	Contact Finish	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Material Flammability Rating	Number of Positions	Flat Flex Type	Actuator Material	Actuator Color	Contact Finish Thickness	Contact Finish Thickness

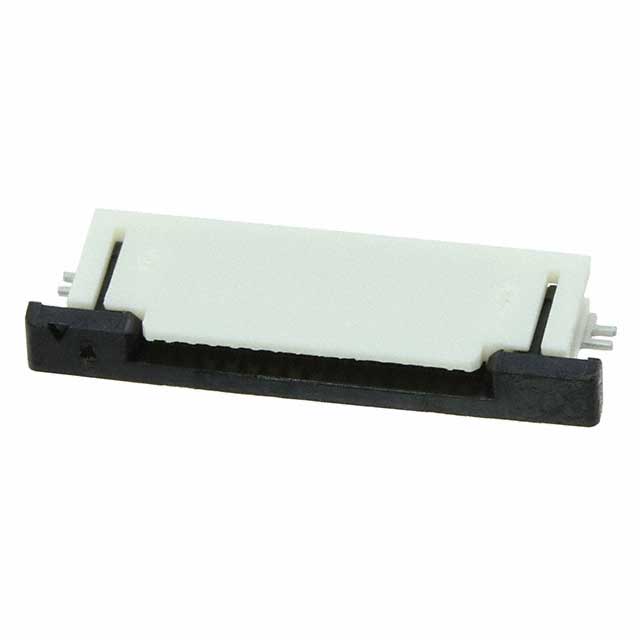

Molex 0527451597	Surface Mount Right Angle	0.3 mm	Solder	20	Straight	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	15	50 V	Phosphor Bronze	Gold	0.5 A	85 °C	-20 C

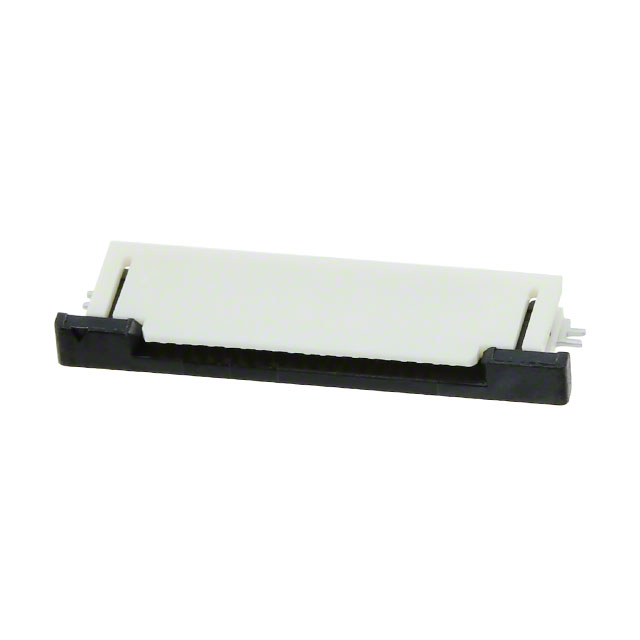

Molex 0527452097	Surface Mount Right Angle	0.3 mm	Solder	20	Straight	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	20	50 V	Phosphor Bronze	Gold	0.5 A	85 °C	-20 C
Molex 0527451690	Surface Mount Right Angle	0.3 mm	Solder	20	Straight Tapered	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top		50 V	Phosphor Bronze	Tin-Lead	0.5 A	85 °C	-20 C	White	UL94 V-0	16	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Black
Molex 0527451990	Surface Mount Right Angle	0.3 mm	Solder	20	Straight Tapered	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	19	50 V	Phosphor Bronze	Tin-Lead	0.5 A	85 °C	-20 C	White	UL94 V-0		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Black
Molex 0527450890	Surface Mount Right Angle	0.3 mm	Solder	20	Straight Tapered	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	8	50 V	Phosphor Bronze	Tin-Lead	0.5 A	85 °C	-20 C	White	UL94 V-0		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Black
Molex 0527451790	Surface Mount Right Angle	0.3 mm	Solder	20	Straight Tapered	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top		50 V	Phosphor Bronze	Tin-Lead	0.5 A	85 °C	-20 C	White	UL94 V-0		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Black

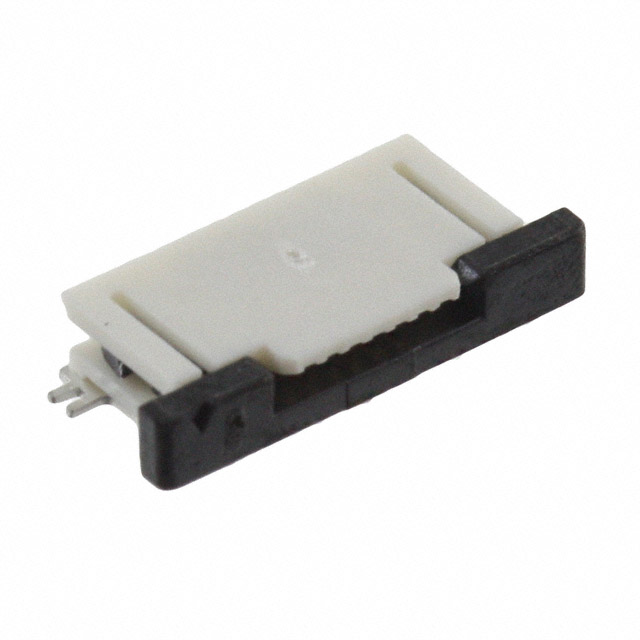

Molex 0527450797	Surface Mount Right Angle	0.3 mm	Solder	20	Straight	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	7	50 V	Phosphor Bronze	Gold	0.5 A	85 °C	-20 C
Molex 0527452497
Molex 0527450996	Surface Mount Right Angle	0.3 mm	Solder	20	Straight Tapered	0.079 in	2 mm	0.5 mm	0.02 in	Glass Filled Nylon 4/6 Polyamide (PA46)	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	9	50 V	Phosphor Bronze	Tin Bismuth	0.5 A	85 °C	-20 C	White	UL94 V-0		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Black

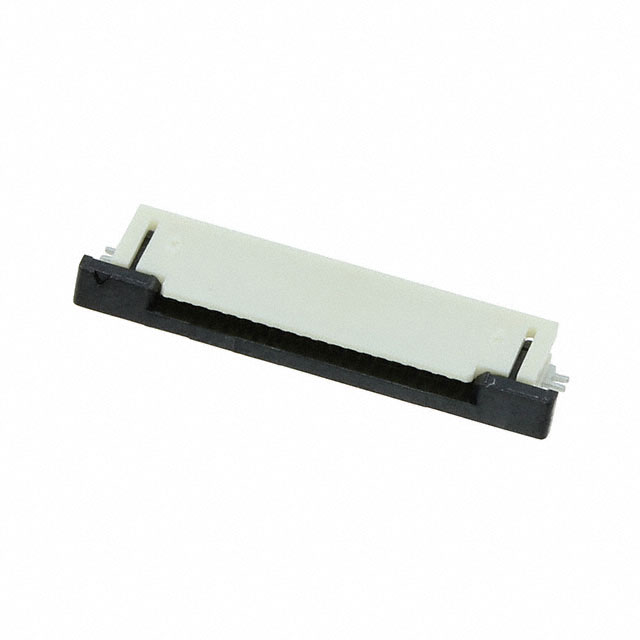

Molex 0527452033	Surface Mount Right Angle	0.3 mm	Solder	20	Straight Tapered	0.079 in	2 mm	0.5 mm	0.02 in	Polyamide (PA) Nylon Glass Filled	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Contacts Top	20	50 V	Phosphor Bronze	Tin Bismuth	0.5 A	85 °C	-40 °C	White	UL94 V-0		FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	Black	39.4 Áin	1 Ám
