851-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 11POS 0.05 GOLD SMD

...

Part	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Material Flammability Rating	Insulation Color	Mounting Type	Connector Type	Number of Positions Loaded	Contact Finish - Post	Termination	Contact Type	Contact Finish - Mating	Number of Positions	Current Rating (Amps)	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

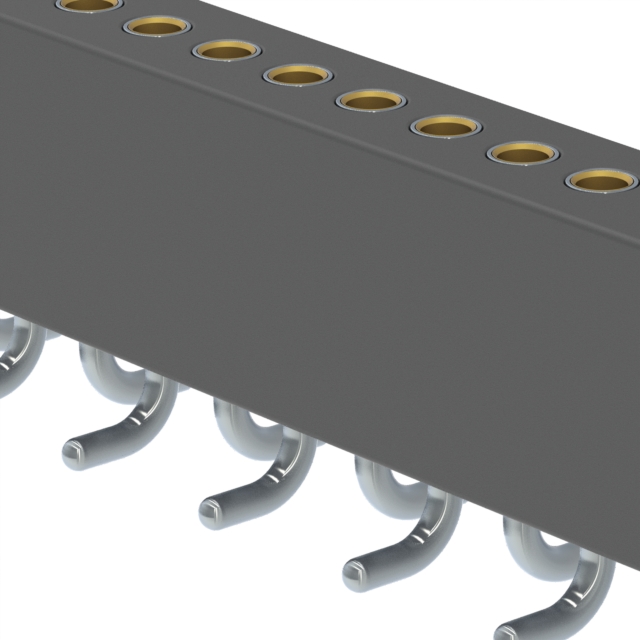

Mill-Max Manufacturing Corp. 851-41-011-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Circular	-55 C	125 °C	Push-Pull	UL94 V-0	Black	Surface Mount	Receptacle	All	Tin	Solder	Female Socket	Gold	11	3 A	5.25 mm	0.207 in	1.27 mm	0.05 in	1	0.25 µm	10 µin
Mill-Max Manufacturing Corp. 851-41-015-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Circular	-55 C	125 °C	Push-Pull	UL94 V-0	Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	15	3 A			1.27 mm	0.05 in	1	0.25 µm	10 µin	2.51 mm	0.099 in	4.1 mm	0.161 in
Mill-Max Manufacturing Corp. 851-41-012-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Circular	-55 C	125 °C	Push-Pull	UL94 V-0	Black	Right Angle Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	12	3 A	2.2 mm	0.087 "	1.27 mm	0.05 in	1	0.25 µm	10 µin	3 mm	0.118 in

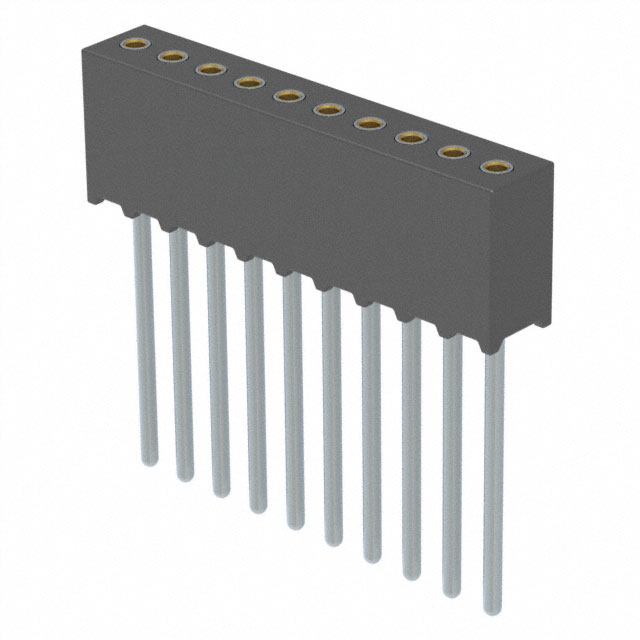

Mill-Max Manufacturing Corp. 851-41-010-10-021000	Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	Brass Alloy	Circular			Push-Pull		Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	10				1.27 mm	0.05 in	1	0.25 µm	10 µin	7.52 mm	0.296 "	4.1 mm	0.161 in

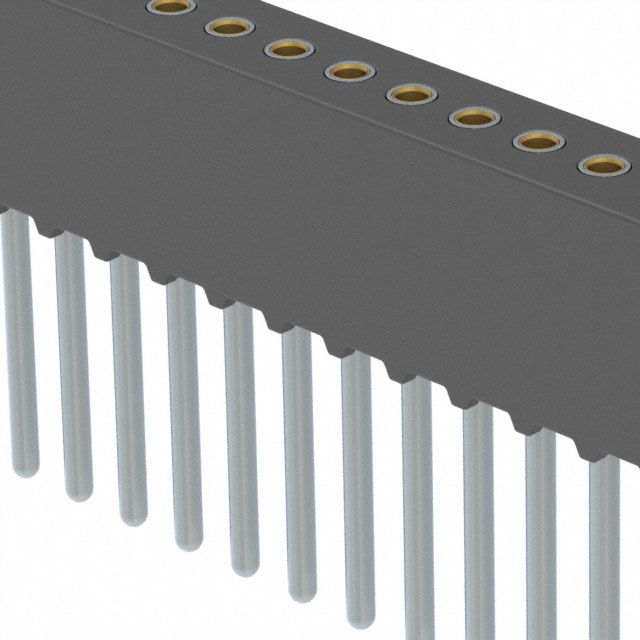

Mill-Max Manufacturing Corp. 851-41-032-10-011000	Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	Brass Alloy	Circular			Push-Pull		Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold					1.27 mm	0.05 in	1	0.25 µm	10 µin	4.98 mm	0.196 in	4.1 mm	0.161 in

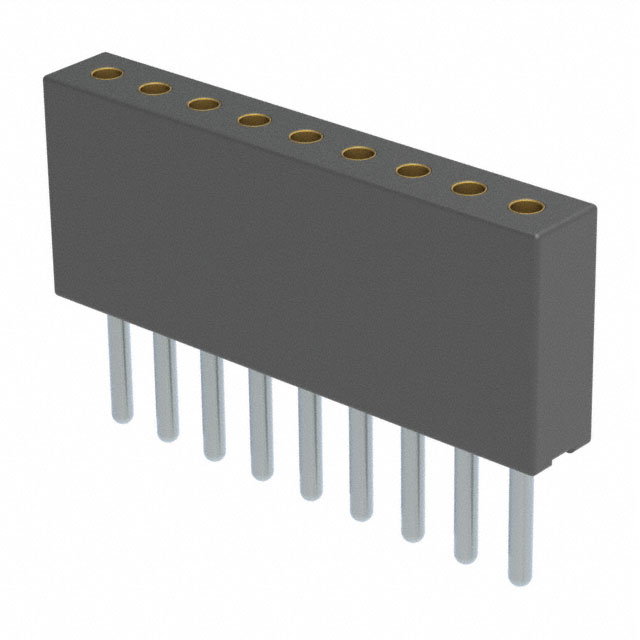

Mill-Max Manufacturing Corp. 851-41-009-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Circular	-55 C	125 °C	Push-Pull	UL94 V-0	Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	9	3 A			1.27 mm	0.05 in	1	0.25 µm	10 µin	2.92 mm	0.115 in	4.7 mm	0.185 in

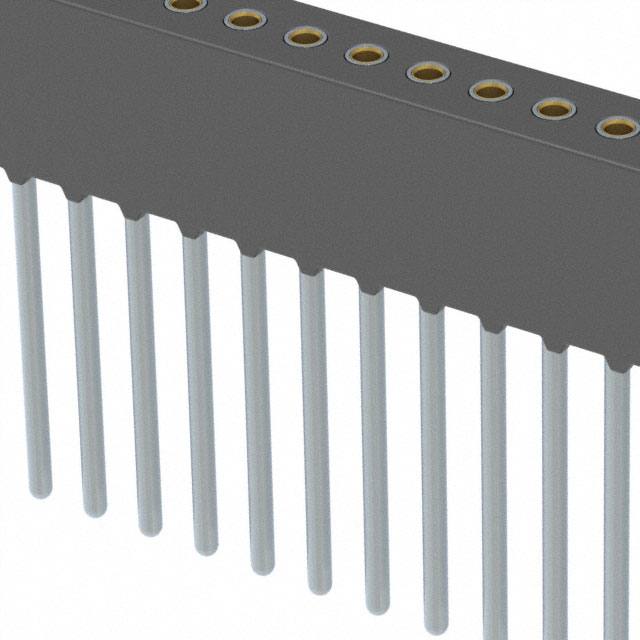

Mill-Max Manufacturing Corp. 851-41-038-10-021000	Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	Brass Alloy	Circular			Push-Pull		Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	38				1.27 mm	0.05 in	1	0.25 µm	10 µin	7.52 mm	0.296 "	4.1 mm	0.161 in
Mill-Max Manufacturing Corp. 851-41-010-10-002000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Circular	-55 C	125 °C	Push-Pull	UL94 V-0	Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	10	3 A			1.27 mm	0.05 in	1	0.25 µm	10 µin	2.92 mm	0.115 in	4.7 mm	0.185 in
Mill-Max Manufacturing Corp. 851-41-042-30-002000	Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	Brass Alloy	Circular			Push-Pull		Black	Surface Mount	Receptacle	All	Tin	Solder	Female Socket	Gold	42		3.78 mm		1.27 mm	0.05 in	1	0.25 µm	10 µin				0.149 in
Mill-Max Manufacturing Corp. 851-41-006-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	200 µin	5.08 µm	Beryllium Copper	Circular	-55 C	125 °C	Push-Pull	UL94 V-0	Black	Through Hole	Receptacle	All	Tin	Solder	Female Socket	Gold	6	3 A			1.27 mm	0.05 in	1	0.25 µm	10 µin	2.51 mm	0.099 in	4.1 mm	0.161 in
