M80-877 Series

Catalog

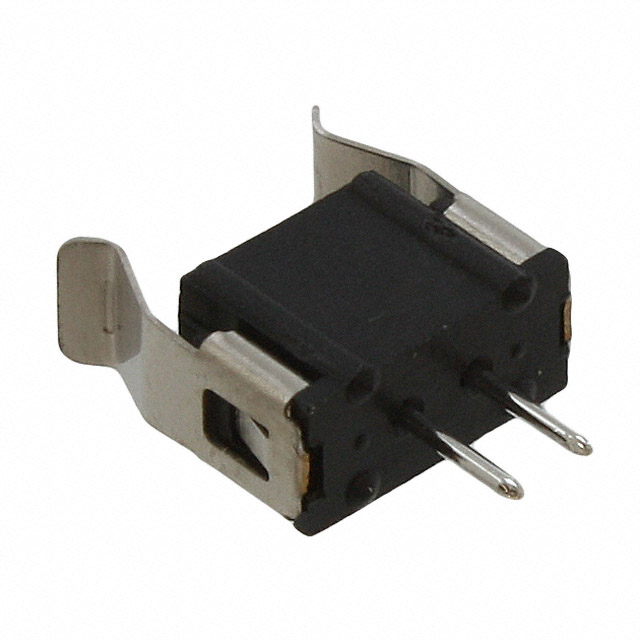

CONN HEADER VERT 2POS 2MM

Part	Mated Stacking Heights	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Post	Contact Shape	Fastening Type	Contact Material	Number of Rows	Number of Positions Loaded	Style	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Current Rating (Amps)	Insulation Color	Contact Finish - Mating	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Connector Type	Voltage Rating	Shrouding	Mounting Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Harwin Inc. M80-8770222	7.23 mm 10.2 mm 13.46 mm	118.1 µin	3 µm	Solder	-55 C	125 °C	2	Tin-Lead	Circular	Latch Lock	Phosphor Bronze	1	All	Board to Board Cable	29.5 µin	0.75 µm	2.2 A	Black	Gold	Male Pin	Polyester Glass Filled	0.118 in	3 mm	Header	800 V	Shrouded - 4 Wall	Through Hole	UL94 V-0	0.219 in	5.56 mm	0.079 "	2 mm
Harwin Inc. M80-8770405	7.23 mm			Solder	-55 C	125 °C	4	Gold	Circular	Latch Lock	Phosphor Bronze	1	All	Board to Board Cable	29.5 µin	0.75 µm	2.2 A	Black	Gold	Male Pin	Polyester Glass Filled	0.118 in	3 mm	Header	800 VAC	Shrouded - 4 Wall	Through Hole	UL94 V-0	0.219 in	5.56 mm	0.079 "	2 mm	29.5 µin	0.75 µm
Harwin Inc. M80-8770322	7.23 mm 10.2 mm 13.46 mm	118.1 µin	3 µm	Solder	-55 C	125 °C		Tin-Lead	Circular	Latch Lock	Phosphor Bronze	1	All	Board to Board Cable	29.5 µin	0.75 µm	2.2 A	Black	Gold	Male Pin	Polyester Glass Filled	0.118 in	3 mm	Header	800 V	Shrouded - 4 Wall	Through Hole	UL94 V-0	0.219 in	5.56 mm	0.079 "	2 mm
Harwin Inc. M80-8770422	7.23 mm 10.2 mm 13.46 mm	118.1 µin	3 µm	Solder	-55 C	125 °C	4	Tin-Lead	Circular	Latch Lock	Phosphor Bronze	1	All	Board to Board Cable	29.5 µin	0.75 µm	2.2 A	Black	Gold	Male Pin	Polyester Glass Filled	0.118 in	3 mm	Header	800 V	Shrouded - 4 Wall	Through Hole	UL94 V-0	0.219 in	5.56 mm	0.079 "	2 mm

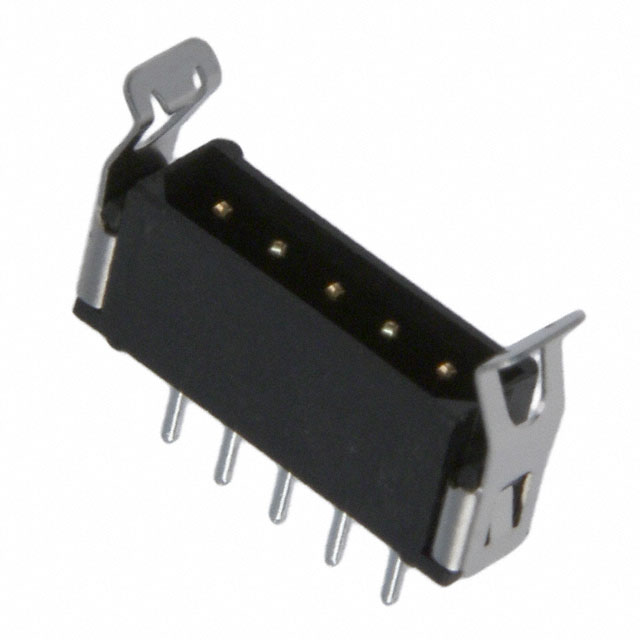

Harwin Inc. M80-8770522	7.23 mm 10.2 mm 13.46 mm	118.1 µin	3 µm	Solder	-55 C	125 °C	5	Tin-Lead	Circular	Latch Lock	Phosphor Bronze	1	All	Board to Board Cable	29.5 µin	0.75 µm	2.2 A	Black	Gold	Male Pin	Polyester Glass Filled	0.118 in	3 mm	Header	800 V	Shrouded - 4 Wall	Through Hole	UL94 V-0	0.219 in	5.56 mm	0.079 "	2 mm
