UA78L09 Series

Catalog

IC REG LINEAR 9V 100MA SOT89-3

Part	Number of Regulators	Output Configuration	Current - Output	Protection Features	Mounting Type	PSRR	Voltage Dropout (Max) [Max]	Supplier Device Package	Package / Case	Output Type	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Package / Case [y]	Package / Case [x]

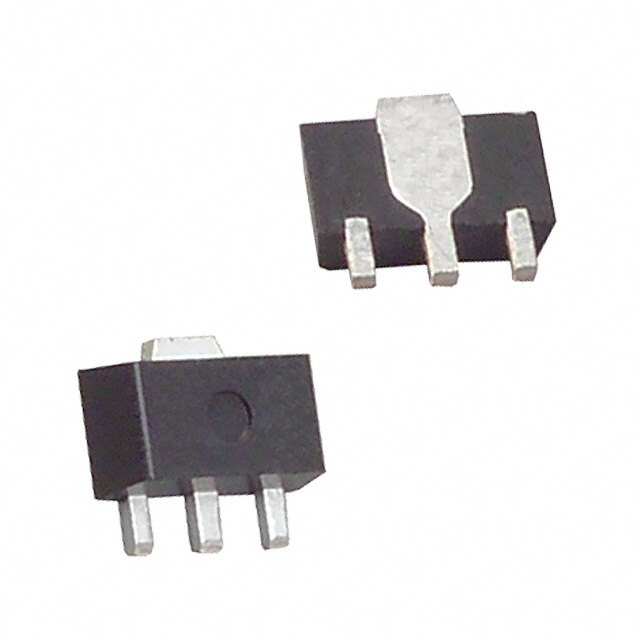

Texas Instruments UA78L09ACPK	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Surface Mount	45 dB	1.7 V	SOT-89-3	TO-243AA	1.81 mOhm	125 °C	9 V	24 V
Texas Instruments UA78L09ACPKG3	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Surface Mount	45 dB	1.7 V	SOT-89-3	TO-243AA	1.81 mOhm	125 °C	9 V	24 V
Texas Instruments UA78L09ACLPE3	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Through Hole	45 dB	1.7 V	TO-92-3	TO-226-3 TO-92-3	1.81 mOhm	125 °C	9 V	24 V
Texas Instruments UA78L09ACLPRE3	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Through Hole	45 dB	1.7 V	TO-92-3	TO-226-3 TO-92-3	1.81 mOhm	125 °C	9 V	24 V

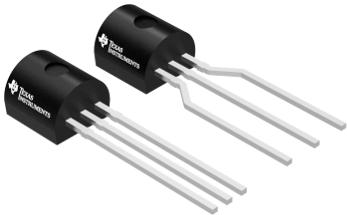

Texas Instruments UA78L09ACLP	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Through Hole	45 dB	1.7 V	TO-92-3	TO-226-3 TO-92-3	1.81 mOhm	125 °C	9 V	24 V
Texas Instruments UA78L09ACLPR	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Through Hole	45 dB	1.7 V	TO-92-3	TO-226-3 TO-92-3	1.81 mOhm	125 °C	9 V	24 V
Texas Instruments UA78L09ACDRE4	1	Positive	100 mA	Over Current Over Temperature Reverse Polarity Short Circuit	Surface Mount	45 dB	1.7 V	8-SOIC	8-SOIC	1.81 mOhm	125 °C	9 V	24 V	3.9 mm	0.154 in
