HSMF-C11B Series

Catalog

LED RGB 0404 SMD

Part	Lens Size [x]	Lens Size [y]	Lens Style	Viewing Angle	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Configuration	Lens Size	Height (Max) [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Supplier Device Package	Mounting Type	Color	Package / Case

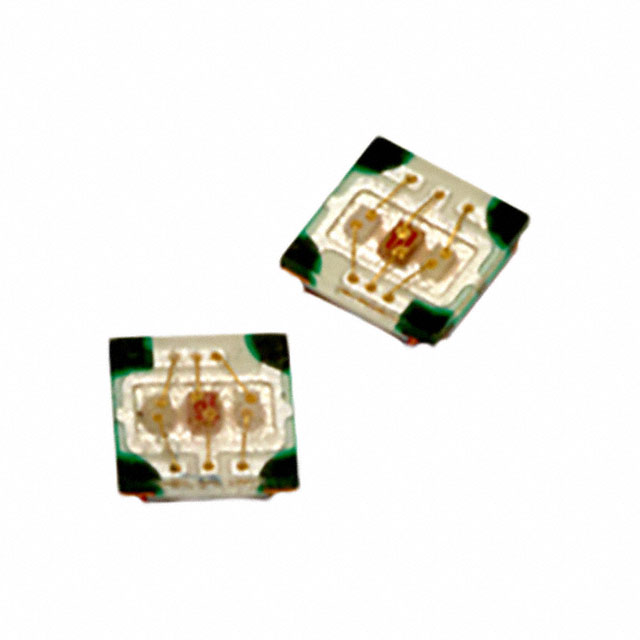

Broadcom Limited HSMF-C11B	1.08 mm	1.08 mm	Round with Flat Top	140 °	2.85 V	2 V	2.85 V	469 nm	635 nm	520 nm	Common Anode	1.08 mm	0.35 mm	527 nm	626 nm	473 nm	5 mA	1.08 mm	1.08 mm	65.25 mcd	165 mcd	281.25 mcd	0404	Surface Mount	Blue Green Red	0404 (1010 Metric)
