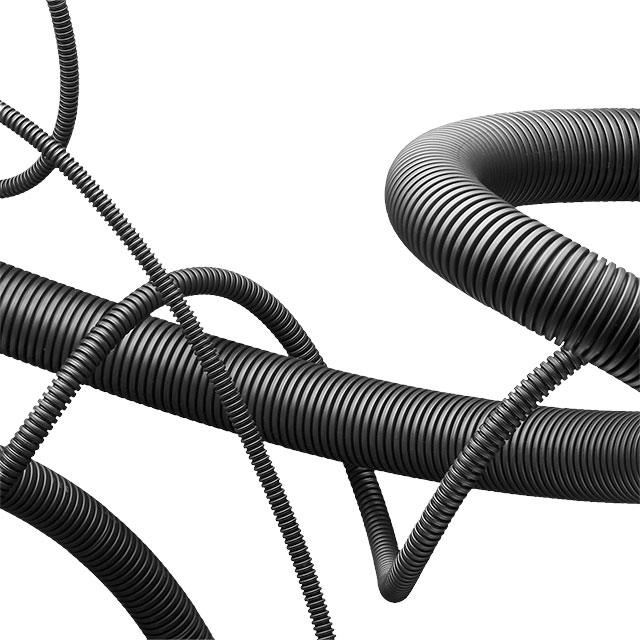

FPDSF Series

Catalog

FIPLOCK, PA12 MOD BS, NW29, FINE

Part	Type	Environment Protection [custom]	Environment Protection [custom]	Type Attributes	Length	Length	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Features
Fraenkische USA, LP FPDSF-29G.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Gray	34.49 mm	1.358 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	29 mm	1.142 in
Fraenkische USA, LP FPDSF-23G.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Gray	28.4 mm	1.118 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	22.6 mm	0.89 in
Fraenkische USA, LP FPDSF-17B.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Black	21.1 mm	0.831 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	16.6 mm	0.654 in	Chemical Resistant
Fraenkische USA, LP FPDSF-36G.25	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	25 m	82.02 '	Gray	42.4 mm	1.669 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	36.5 mm	1.437 in
Fraenkische USA, LP FPDSF-48G.25	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	25 m	82.02 '	Gray	54.4 mm	2.142 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	47.5 mm	1.87 "
Fraenkische USA, LP FPDSF-12G.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Gray	15.7 mm	0.618 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	12 mm	0.472 in
Fraenkische USA, LP FPDSF-36B.25	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	25 m	82.02 '	Black	42.4 mm	1.669 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	36.5 mm	1.437 in	Chemical Resistant
Fraenkische USA, LP FPDSF-12B.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Black	15.7 mm	0.618 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	12 mm	0.472 in	Chemical Resistant
Fraenkische USA, LP FPDSF-07B.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Black	10 mm	0.394 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	6.2 mm	0.244 in	Chemical Resistant
Fraenkische USA, LP FPDSF-29B.50	Wire Loom Protective Hose	UV Resistant	Weather Resistant	Convoluted Corrugated	50 m	164 ft	Black	34.49 mm	1.358 in	110 °C	-50 °C	Nylon 12 Polyamide (PA12)	29 mm	1.142 in	Chemical Resistant
