21519 Series
Manufacturer: Pflitsch
Beta
⌘K

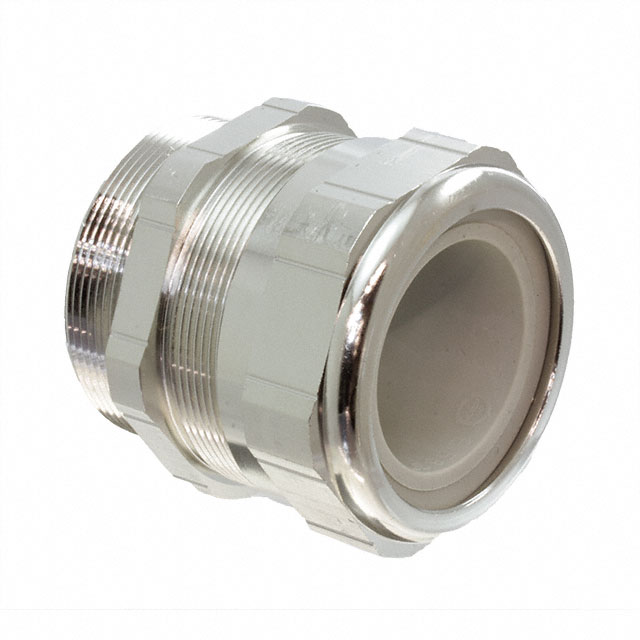

CABLE GLND 32-37.08MM PG42 BRASS
| Part | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Panel Hole Size | Panel Hole Size | Type | Material | Color | Ingress Protection | Thread Size | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) | Thread Length | Thread Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | 32 mm | 1.26 in | -40 C | 300 °C | Sealing Ring | 54.1 mm | 2.13 in | Cable Gland | Brass Nickel Plated | Silver | IP68 - Dust Tight Waterproof NEMA 4X | PG42 | 1.46 in | 37.08 mm | 14.99 mm | 0.59 in |
