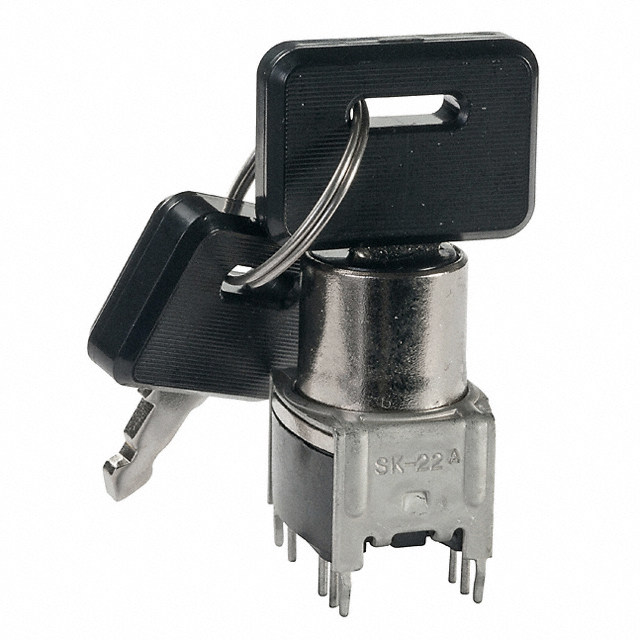

SK22AG Series
Manufacturer: NKK Switches
Beta
⌘K
KEYLOCK SWITCH, PROCESS SEALED, ON-NONE-ON, DPDT, SK SERIES, 2 POSITION, PC PIN
| Part | Electrical Life | Mechanical Life | Key Removable Positions | Contact Material | Actuator Type | Features | Termination Style | Voltage Rating - DC | Angle of Throw | Contact Timing | Contact Finish | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Circuit | Mounting Type | Number of Positions | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | All | Beryllium Copper | Flat Key | Process Sealed | PC Pin | 28 V | 90 ° | Non-Shorting (BBM) | Gold | 28 V | -25 °C | 70 °C | 0.4 VA | DPDT | Through Hole | 2 | On-On |
