ACSC02 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7-SEG 0.2" SGL YLW 10SMD
| Part | Number of Characters | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Current - Test | Color | Display Type | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) [Max] | Common Pin | Package / Case | Millicandela Rating | Wavelength - Peak |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 1 | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | 2 V | 20 mA | Yellow | 7-Segment | 0.2 in | 5.08 mm | 75 mw | Common Cathode | 10-SMD No Lead | 50 mcd | 590 nm |

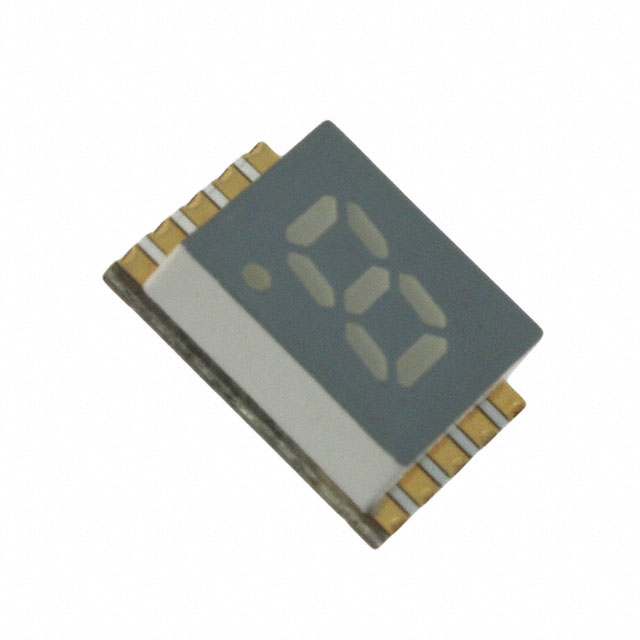

 Kingbright | 1 | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | 1.95 V | 20 mA | Red | 7-Segment | 0.2 in | 5.08 mm | 75 mw | Common Cathode | 10-SMD No Lead | 30 mcd | 650 nm |

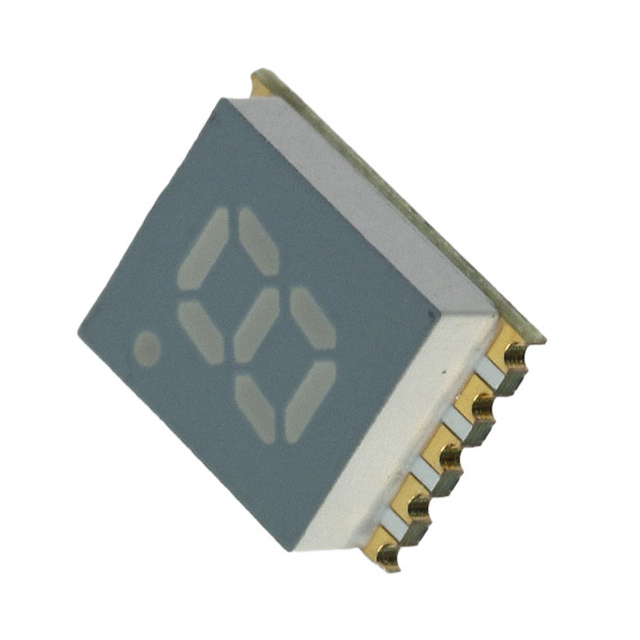

 Kingbright | 1 | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | 2.2 V | 20 mA | Green | 7-Segment | 0.2 in | 5.08 mm | 62.5 mW | Common Cathode | 10-SMD No Lead | 3.9 mcd | 565 nm |
 Kingbright | 1 | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | 2.1 V | 20 mA | Green | 7-Segment | 0.2 in | 5.08 mm | 75 mw | Common Cathode | 10-SMD No Lead | 12 mcd | |
Kingbright | 1 | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | 2.1 V | 20 mA | 7-Segment | 0.2 in | 5.08 mm | 75 mw | Common Cathode | 10-SMD No Lead | 37 mcd | 610 nm |
