90146 Series
Manufacturer: Preci-Dip
Beta
⌘K

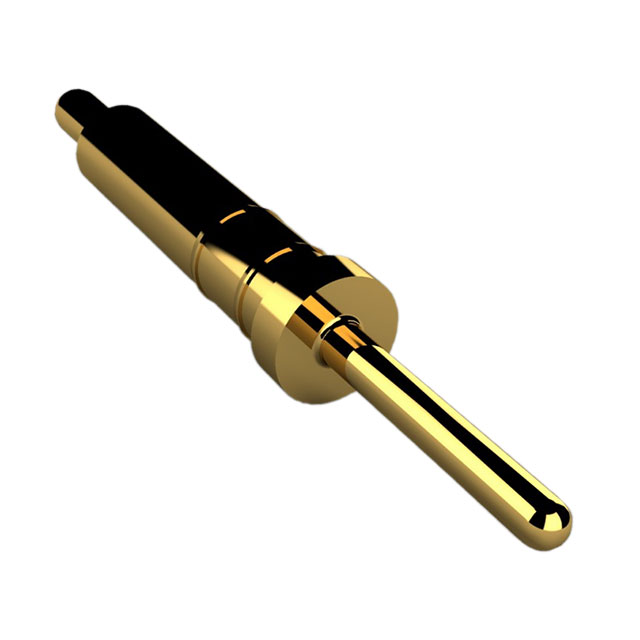

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Current Rating (Amps) | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mounting Type | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Type | Contact Finish | Operating Force - Mid Compression |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 16 µin | 0.41 µm | 25.49 gf | 3 A | 0.051 " | 1.3 mm | Brass Alloy | 0.118 in | 3 mm | Through Hole | 40000 | 0.551 in | 14 mm | Sleeve & Plunger (Pogo Pins) | Gold | 127.46 gf |
