1393479 Series

Catalog

D-SUB STD CONN V23529A1223C225 S

Part	Mounting Type	Contact Finish	Contact Type	Flange Feature	Flange Feature	Features	Connector Style	Number of Positions	Number of Rows [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Connector Type	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]

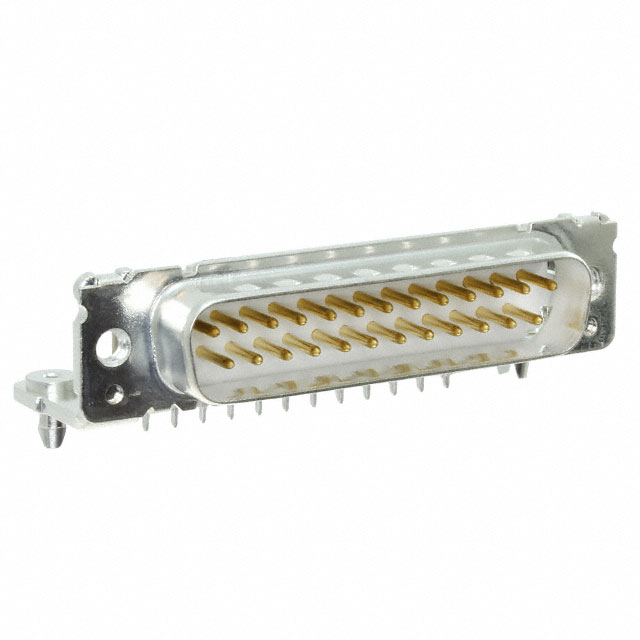

TE Connectivity AMP Connectors 4-1393479-5	Right Angle Through Hole	Gold	Signal	Housing/Shell	4-40	Grounding Indents	D-Sub	25	2	B DB	3	Plug Male Pins	Solder
TE Connectivity AMP Connectors 4-1393479-5	Right Angle Through Hole	Gold	Signal	Housing/Shell	4-40	Grounding Indents	D-Sub	25	2	B DB	3	Plug Male Pins	Solder
TE Connectivity AMP Connectors 4-1393479-4	Right Angle Through Hole	Gold	Signal	Housing/Shell	4-40	Grounding Indents	D-Sub	15	2			Plug Male Pins	Solder	2
TE Connectivity AMP Connectors 4-1393479-0	Right Angle Through Hole	Gold	Signal			Grounding Indents	D-Sub					Plug Male Pins	Solder

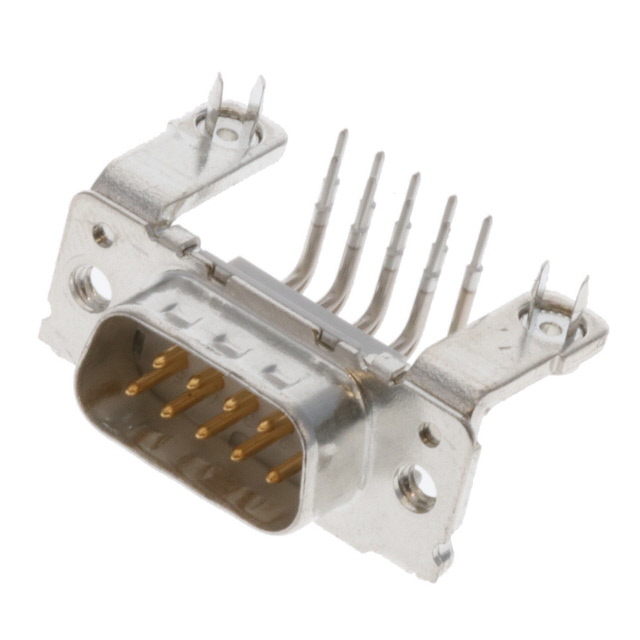

TE Connectivity AMP Connectors 4-1393479-3	Right Angle Through Hole	Gold	Signal	Housing/Shell	4-40	Grounding Indents	D-Sub	9	2			Plug Male Pins	Solder		1	DE E
TE Connectivity AMP Connectors 5-1393479-9	Right Angle Through Hole	Gold	Signal				D-Sub	9	2			Receptacle Female Sockets	Solder		1	DE E
