794067 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

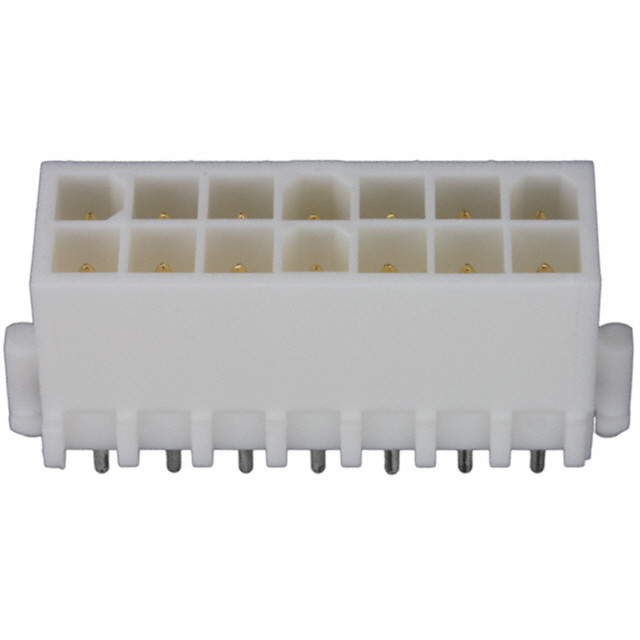

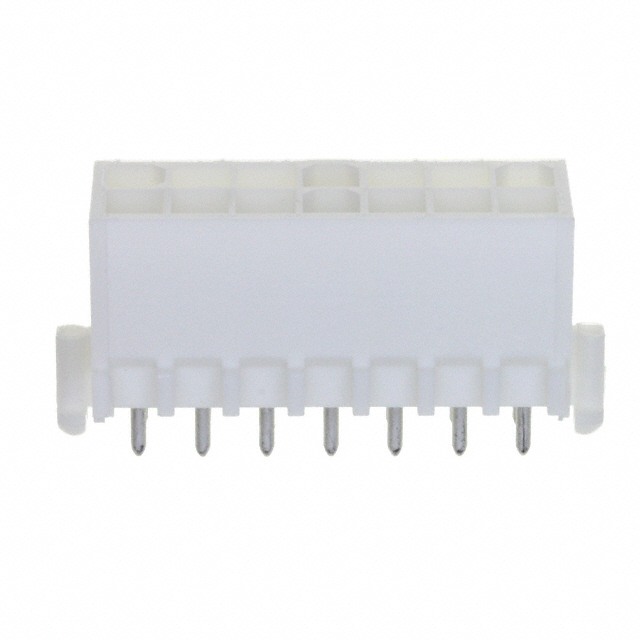

CONN HEADER VERT 14POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Voltage Rating | Insulation Height | Insulation Height | Connector Type | Contact Material | Number of Positions Loaded | Number of Rows [custom] | Shrouding | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Current Rating (Amps) | Termination | Number of Positions | Features | Insulation Color | Contact Type | Mounting Type | Insulation Material | Fastening Type | Material Flammability Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 600 VAC | 13.5 mm | 0.531 in | Header | Brass | All | 2 | Shrouded - 4 Wall | Tin-Lead | 4.45 mm | 0.175 in | 150 Áin | 3.81 Ám | Board to Cable/Wire | 85 °C | -20 ░C | 0.163 in | 4.14 mm | 4.14 mm | 0.163 in | Circular | Varies by Wire Gauge | Solder | 14 | Board Lock | White | Male Pin | Through Hole | Nylon Polyamide (PA) | Locking Ramp | UL94 V-0 | Tin-Lead |
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | 600 VAC | 13.5 mm | 0.531 in | Header | Brass | All | 2 | Shrouded - 4 Wall | Tin-Lead | 4.45 mm | 0.175 in | 30 Áin | 0.76 Ám | Board to Cable/Wire | 105 ░C | -20 ░C | 0.163 in | 4.14 mm | 4.14 mm | 0.163 in | Circular | Varies by Wire Gauge | Solder | 14 | Board Lock | White | Male Pin | Through Hole | Nylon Polyamide (PA) | Locking Ramp | UL94 V-0 | Gold |
