794107 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

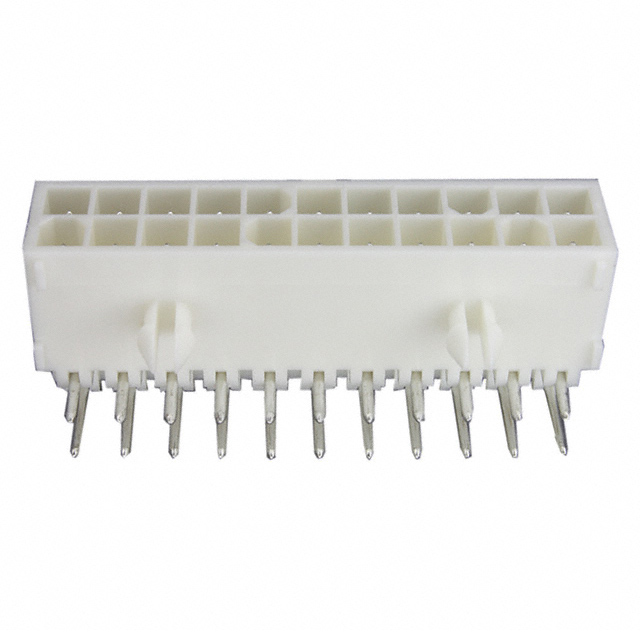

CONN WIRE TO BOARD HDR 22POWER POS 4.14MM SOLDER RA THRU-HOLE BAG
| Part | Applications | Contact Finish Thickness - Post | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Shrouding | Number of Positions Loaded | Contact Finish - Mating | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Mounting Type | Style | Contact Type | Contact Finish - Post | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Pitch - Mating | Pitch - Mating | Contact Material | Voltage Rating | Insulation Height | Insulation Height | Number of Rows [custom] | Connector Type | Current Rating (Amps) | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.81 Ám | Circular | 150 Áin | 3.81 Ám | Solder | Shrouded - 4 Wall | All | Tin-Lead | Board Lock | 4.14 mm | 0.163 in | 22 | Right Angle Through Hole | Board to Cable/Wire | Male Pin | Tin-Lead | Locking Ramp | 85 °C | -20 ░C | Nylon Polyamide (PA) | 0.163 in | 4.14 mm | Brass | 600 VAC | 9.8 mm | 0.386 in | 2 | Header | Varies by Wire Gauge | UL94 V-0 | 3.68 mm | 0.145 in | White |
