SFH413 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER 50POS IDC GOLD

Part	Wire Type	Color	Mounting Type	Contact Finish	Number of Rows [custom]	Connector Type	Number of Positions	Row Spacing	Row Spacing	Cable Termination	Contact Type	Features	Contact Finish Thickness	Pitch	Pitch	Number of Positions [custom]
Sullins Connector Solutions SFH413-PPVB-D25-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	50	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm

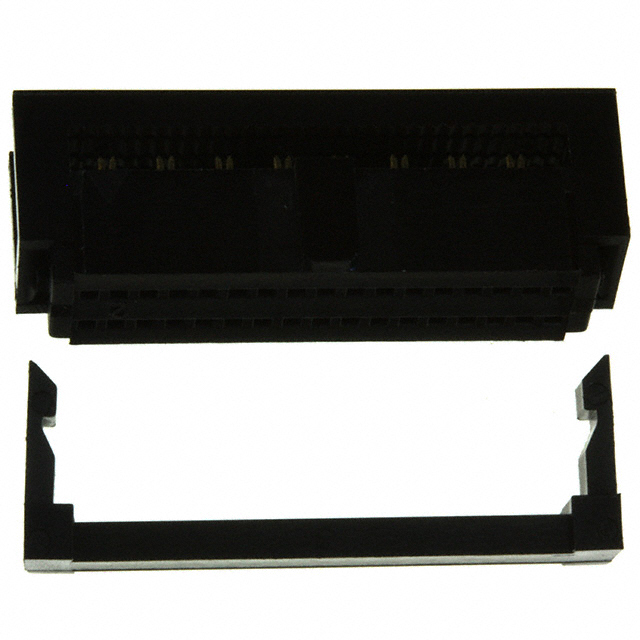

Sullins Connector Solutions SFH413-PPPB-D17-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header		2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm	34
Sullins Connector Solutions SFH413-PPVB-D40-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	80	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm
Sullins Connector Solutions SFH413-PPPB-D30-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	60	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm
Sullins Connector Solutions SFH413-PPVB-D20-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	40	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm

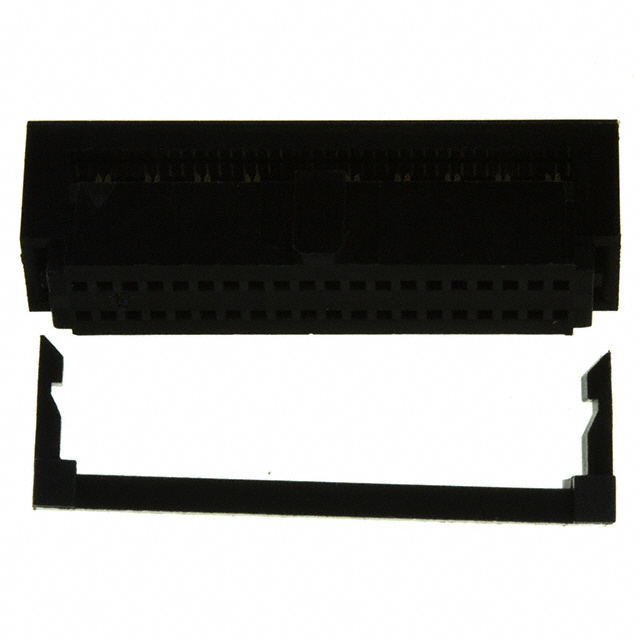

Sullins Connector Solutions SFH413-PPPB-D20-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	40	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm

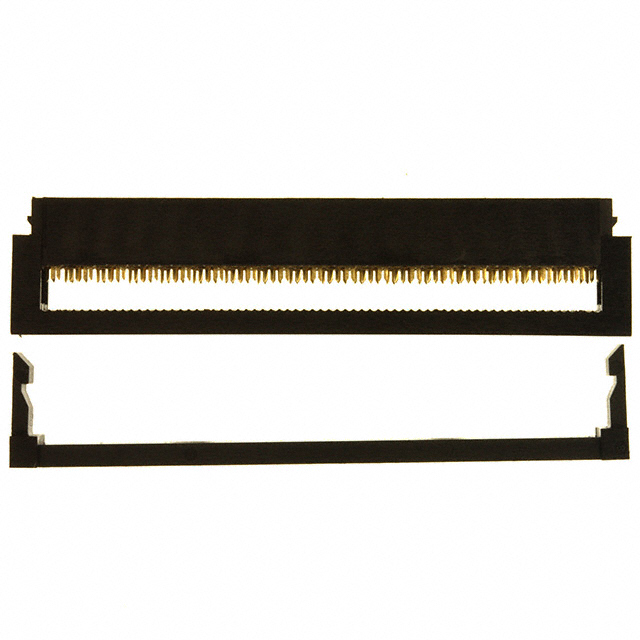

Sullins Connector Solutions SFH413-PPPB-D34-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	68 positions	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm
Sullins Connector Solutions SFH413-PPPB-D50-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	100	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm

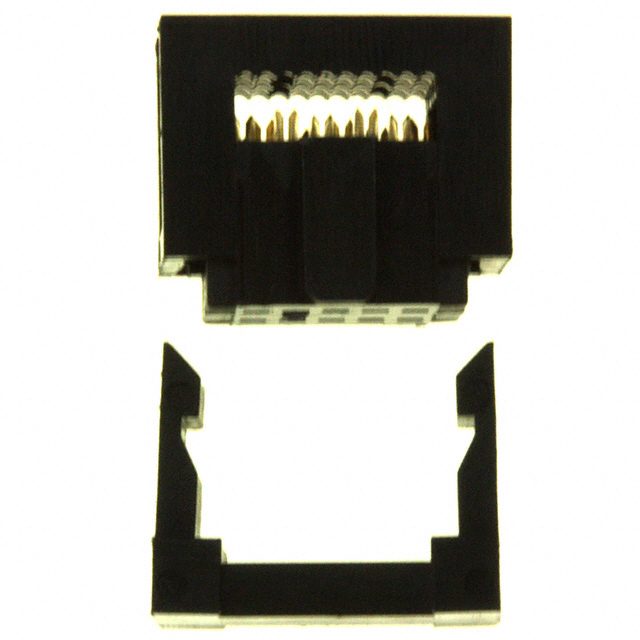

Sullins Connector Solutions SFH413-PPPB-D05-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	10	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm
Sullins Connector Solutions SFH413-PPVB-D13-ID-BK	Ribbon Cable	Black	Free Hanging (In-Line)	Gold	2	Header	26	2.54 mm	0.1 "	IDC	Female Socket	Feed Through Polarizing Key Strain Relief	Flash	0.05 in	1.27 mm
