074300 Series
Manufacturer: Molex
Beta
⌘K

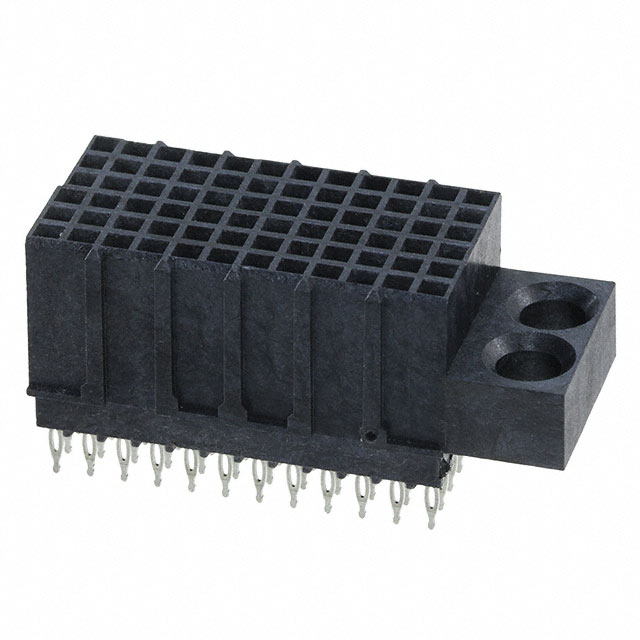

CONN RCPT HDM 72POS PCB
| Part | Number of Columns | Pitch [x] | Pitch [x] | Color | Voltage Rating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions Loaded | Connector Style | Mounting Type | Contact Finish | Material Flammability Rating | Connector Type | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 12 | 0.079 in | 2 mm | Black | 250 VDC | Mating Guide Stackable | 105 ░C | -55 °C | Press-Fit | All | HDM | Through Hole | Gold | UL94 V-0 | Receptacle Female Sockets | 72 | 6 | ||
 Molex | 24 | 0.079 in | 2 mm | Black | 250 VDC | Mating Guide Stackable | 105 ░C | -55 °C | Press-Fit | All | HDM | Through Hole | Gold | UL94 V-0 | Receptacle Female Sockets | 144 | 6 | ||
 Molex | 24 | 0.079 in | 2 mm | Black | 250 VDC | Mating Guide Stackable | 105 ░C | -55 °C | Solder | All | HDM | Through Hole | Gold | UL94 V-0 | Receptacle Female Sockets | 144 | 6 | 0.76 Ám | 30 Áin |
