G2RL-1-H Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPDT 10A 24V

Part	Contact Form	Load - Max Switching	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Insulation	Operate Time	Must Release Voltage	Coil Resistance	Coil Current	Relay Type	Approval Agency	Coil Voltage	Coil Type	Mounting Type	Release Time	Seal Rating	Must Operate Voltage	Contact Rating (Current)	Switching Voltage	Contact Material

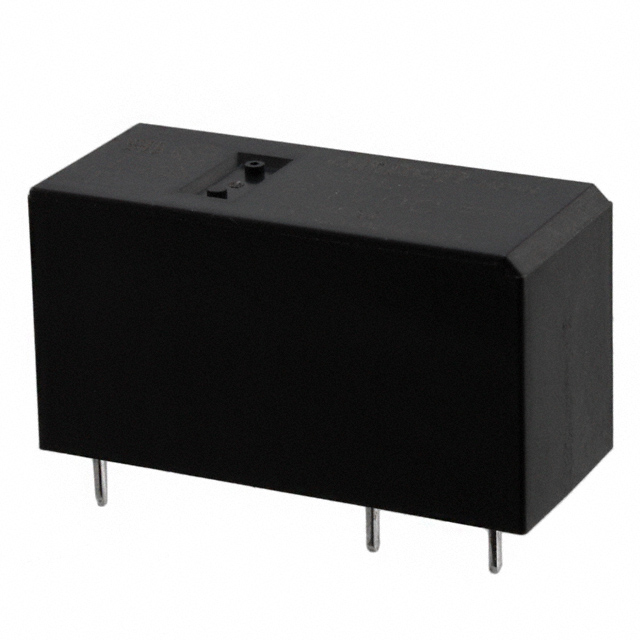

Omron Electronics Inc-EMC Div G2RL-1-H DC24	SPDT (1 Form C)	3000 W 4400 VA	PC Pin	85 °C	-40 °C	Class F	15 ms	2.4 VDC	2.3 kOhms	10.4 mA	General Purpose	CQC CSA UR VDE	24 VDC	Non Latching	Through Hole	5 ms	Sealed - Flux Protection	18 VDC	10 A	300 VDC 440 VAC	Cadmium Free Silver Alloy

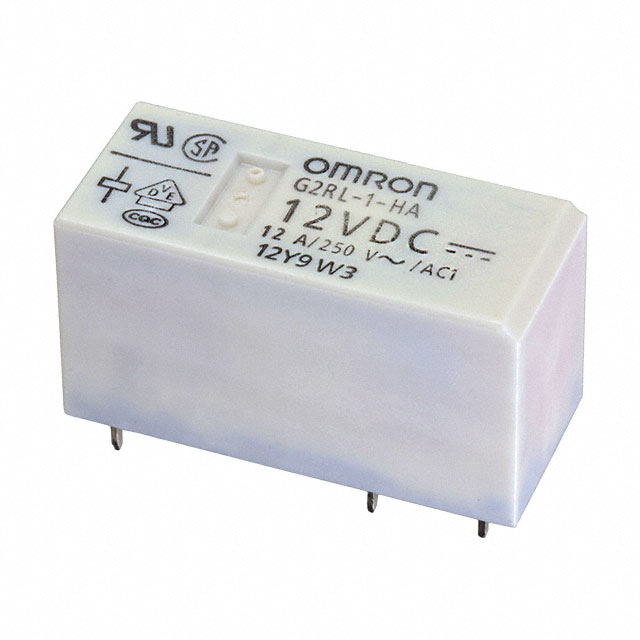

Omron Electronics Inc-EMC Div G2RL-1-HA DC12	SPDT (1 Form C)	3600 W 5280 VA	PC Pin	85 °C	-40 °C	Class F	15 ms	1.2 VDC	360 Ohms	33.3 mA	General Purpose	CQC CSA UR VDE	12 VDC	Non Latching	Through Hole	5 ms	Sealed - Flux Protection	8.4 VDC	12 A	300 VDC 440 VAC	Cadmium Free Silver Alloy
Omron Electronics Inc-EMC Div G2RL-1-H DC5	SPDT (1 Form C)	3000 W 4400 VA	PC Pin	85 °C	-40 °C	Class F	15 ms	0.5 VDC	100 Ohms	50 mA	General Purpose	CQC CSA UR VDE	5 VDC	Non Latching	Through Hole	5 ms	Sealed - Flux Protection	3.75 VDC	10 A	300 VDC 440 VAC	Cadmium Free Silver Alloy
Omron Electronics Inc-EMC Div G2RL-1-HA DC5	SPDT (1 Form C)	3600 W 5280 VA	PC Pin	85 °C	-40 °C	Class F	15 ms	0.5 VDC	62.5 Ohms	80 mA	General Purpose	CQC CSA UR VDE	5 VDC	Non Latching	Through Hole	5 ms	Sealed - Flux Protection	3.5 VDC	12 A	300 VDC 440 VAC	Cadmium Free Silver Alloy

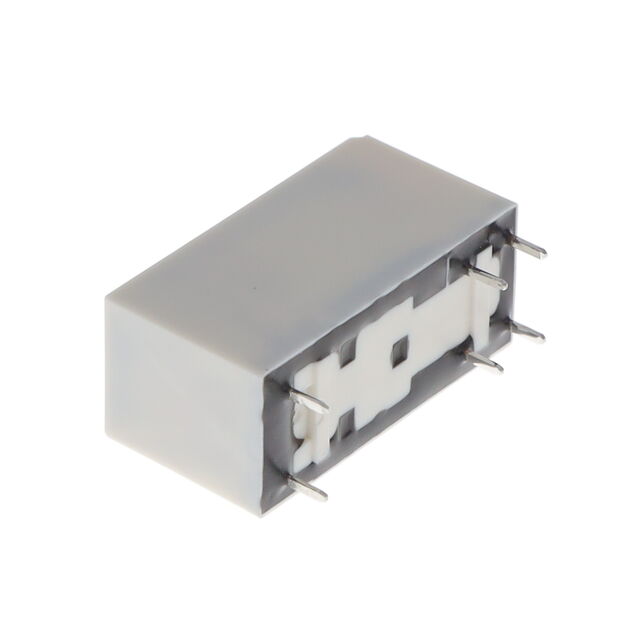

Omron Electronics Inc-EMC Div G2RL-1-HA DC24	SPDT (1 Form C)	3600 W 5280 VA	PC Pin	85 °C	-40 °C	Class F	15 ms	2.4 VDC	1440 Ohms	16.7 mA	General Purpose	CQC CSA UR VDE	24 VDC	Non Latching	Through Hole	5 ms	Sealed - Flux Protection	16.8 VDC	12 A	300 VDC 440 VAC	Cadmium Free Silver Alloy
