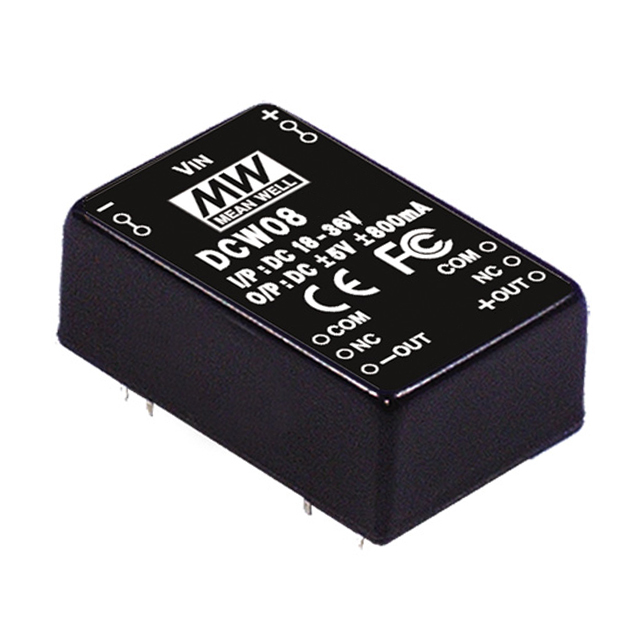

DCW08 Series

Catalog

DC DC CONVERTER +/-5V 8W

Part	Features	Efficiency	Number of Outputs	Power (Watts)	Package / Case	Mounting Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Output 2	Applications	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Current - Output (Max) [Min]
MEAN WELL USA Inc. DCW08C-05	OCP SCP	78 %	2	8 W	24-DIP Module 8 Leads	Through Hole	5 V	-40 °C	71 °C	1000 V	-5 V	ITE (Commercial)	72 V	800 mA	800 mA	36 V	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW08A-15	OCP SCP	80 %	2	8 W	24-DIP Module 8 Leads	Through Hole	15 V	-40 °C	71 °C	1000 V	-15 V	ITE (Commercial)	18 V			9 V	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	267 mA
MEAN WELL USA Inc. DCW08A-12	OCP SCP	80 %	2	8 W	24-DIP Module 8 Leads	Through Hole	12 V	-40 °C	71 °C	1000 V	-12 V	ITE (Commercial)	18 V			9 V	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	335 mA	335 mA
MEAN WELL USA Inc. DCW08B-05	OCP SCP	78 %	2	8 W	24-DIP Module 8 Leads	Through Hole	5 V	-40 °C	71 °C	1000 V	-5 V	ITE (Commercial)	36 V	800 mA	800 mA	18 V	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW08A-05	OCP SCP	75 %	2	8 W	24-DIP Module 8 Leads	Through Hole	5 V	-40 °C	71 °C	1000 V	-5 V	ITE (Commercial)	18 V	800 mA	800 mA	9 V	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm
MEAN WELL USA Inc. DCW08C-15	OCP SCP	80 %	2	8 W	24-DIP Module 8 Leads	Through Hole	15 V	-40 °C	71 °C	1000 V	-15 V	ITE (Commercial)	72 V			36 V	Isolated Module	0.8 "	1.25 in	12.2 mm	0.48 "	31.8 mm	20.3 mm	267 mA
