250mA Dual Outputs AMOLED Display Power Supply
Key Features

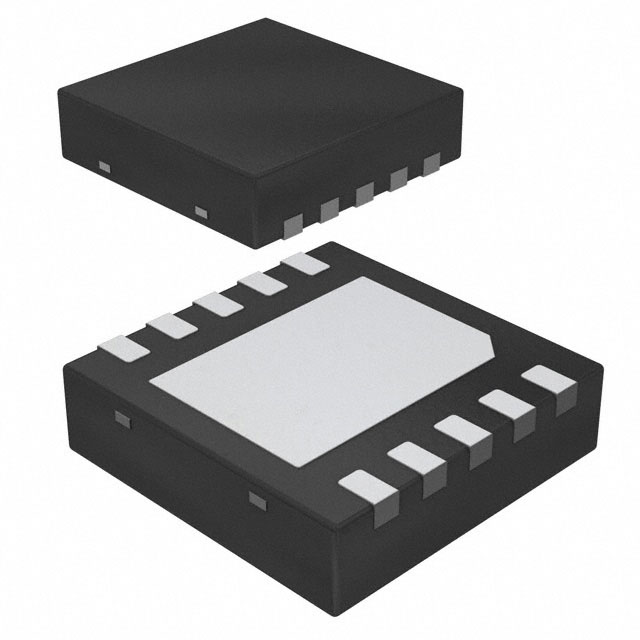

• 2.5 V to 4.8 V Input Voltage Range0.8% Output Voltage Accuracy VPOSExcellent Line Transient Regulation250 mA Output CurrentFixed 4.6 V VPOSOutput VoltageDigitally Programmable VNEG, –2.2V to –5.2V–4.9V Default Value for VNEGShort Circuit ProtectionThermal Shutdown3mm × 3mm 10-Pin QFN Package2.5 V to 4.8 V Input Voltage Range0.8% Output Voltage Accuracy VPOSExcellent Line Transient Regulation250 mA Output CurrentFixed 4.6 V VPOSOutput VoltageDigitally Programmable VNEG, –2.2V to –5.2V–4.9V Default Value for VNEGShort Circuit ProtectionThermal Shutdown3mm × 3mm 10-Pin QFN Package
Description
AI
The TPS65137AS is designed to drive AMOLED displays (Active Matrix Organic Light Emitting Diode) requiring positive and negative voltage supply rails. The device integrates a boost converter with LDO post regulator and an inverting buckboost converter suitable for battery operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65137AS uses a novel technology enabling excellent line and load regulation. This is required to avoid disturbance of the AMOLED display by the input voltage disturbances occurring during transmit periods in mobile phones.
The TPS65137AS is designed to drive AMOLED displays (Active Matrix Organic Light Emitting Diode) requiring positive and negative voltage supply rails. The device integrates a boost converter with LDO post regulator and an inverting buckboost converter suitable for battery operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65137AS uses a novel technology enabling excellent line and load regulation. This is required to avoid disturbance of the AMOLED display by the input voltage disturbances occurring during transmit periods in mobile phones.
