2314577 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

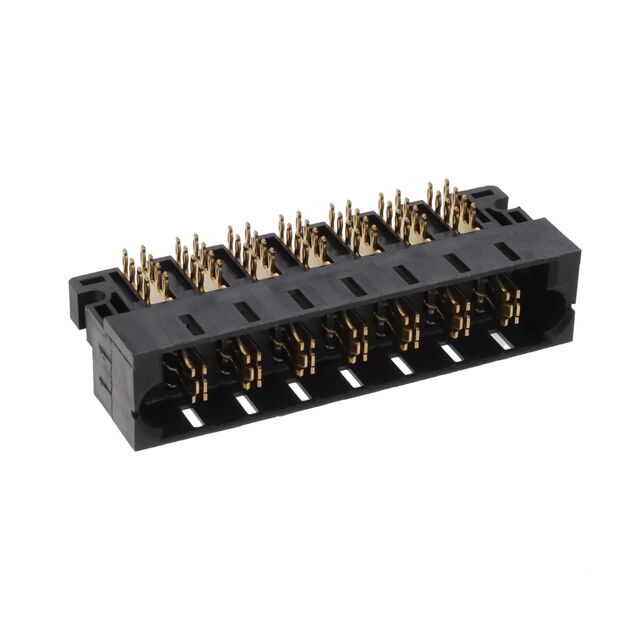

R/A HEADER, MULTI-BEAM XLE, VITA
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Positions Loaded | Features | Material Flammability Rating | Number of Rows | Connector Style | Connector Type | Contact Layout, Typical | Number of Positions | Termination | Current Rating (Amps) | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 300 VDC | 125 °C | -40 °C | Gold | 50 µin | 1.27 µm | 0.3 in | 7.62 mm | All | Mating Guide | UL94 V-0 | 1 | Multi-Beam | Header Male Blades | 7 Power | 7 | Press-Fit | 75 A | Board Edge Right Angle Through Hole | Black |
