8252-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Tail Type	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 8252-0-15-80-30-84-10-0	-55 C	125 °C	Press-Fit	0.068 in	1.73 mm	2.54 µm	100 µin	Beryllium Copper	No Tail	Tin	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 8252-0-15-15-30-14-10-0	-55 C	125 °C	Press-Fit	0.068 in	1.73 mm	0.25 Ám	10 Áin	Beryllium Copper	No Tail	Gold	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 8252-0-15-80-30-14-10-0	-55 C	125 °C	Press-Fit	0.068 in	1.73 mm	0.25 Ám	10 Áin	Beryllium Copper	No Tail	Gold	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in	0.1 in	2.54 mm

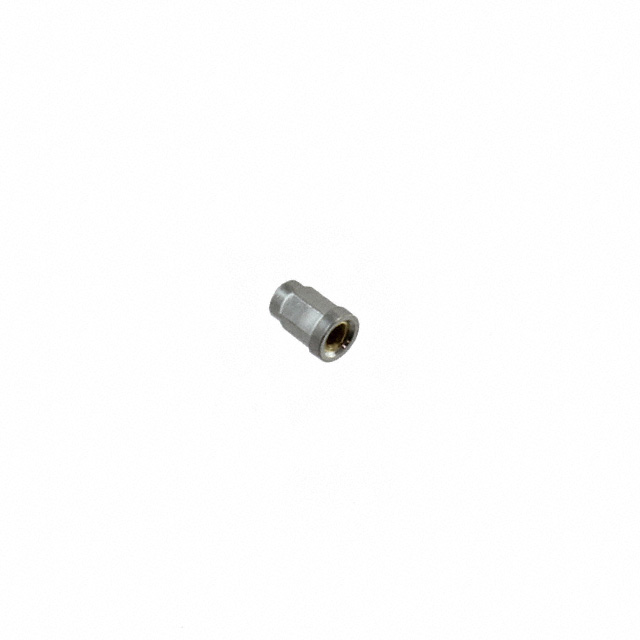

Mill-Max Manufacturing Corp. 8252-0-15-80-30-27-10-0	-55 C	125 °C	Press-Fit	0.068 in	1.73 mm	0.76 Ám	30 Áin	Beryllium Copper	No Tail	Gold	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 8252-0-15-01-30-14-10-0	-55 C	125 °C	Press-Fit	0.068 in	1.73 mm	0.25 Ám	10 Áin	Beryllium Copper	No Tail	Gold	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
