CRE22F2B Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH ROCKER ON OFF SPST QUICK CONNECT CURVED ROCKER 20A 250VAC 559.27VA 100000CYCLES
| Part | Mechanical Life | Electrical Life | Illumination Type, Color [custom] | Illumination Type, Color [custom] | Current Rating (Amps) | Termination Style | Actuator Type | Voltage Rating - AC | Illumination Voltage (Nominal) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Switch Function | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

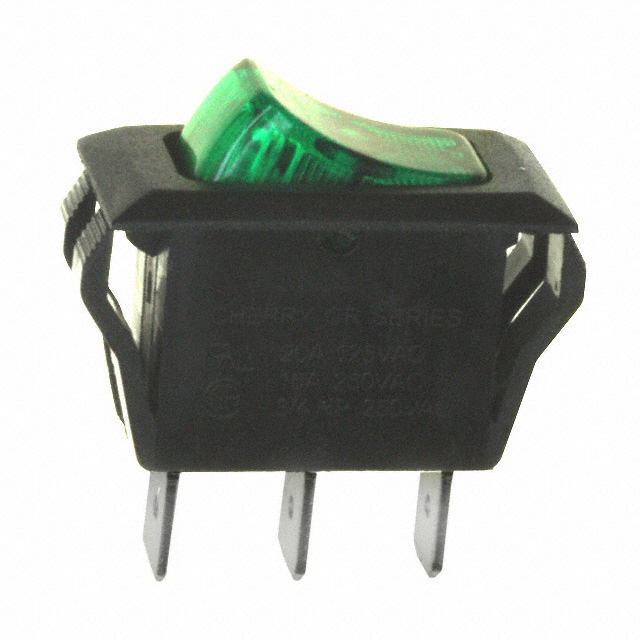

 ZF Electronics | 100000 Cycles | 6000 Cycles | Neon | Green | 20 A | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 125 V | 125 VAC | 85 °C | -20 ░C | Panel Mount Snap-In | SPST | No Marking | 28.5 mm | 12.1 mm | Green | On-Off | |
ZF Electronics | 100000 Cycles | 6000 Cycles | 20 A | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 125 V | 125 VAC | 85 °C | -20 ░C | Panel Mount Snap-In | SPST | No Marking | 28.5 mm | 12.1 mm | Red | On-Off | Neon Red | ||

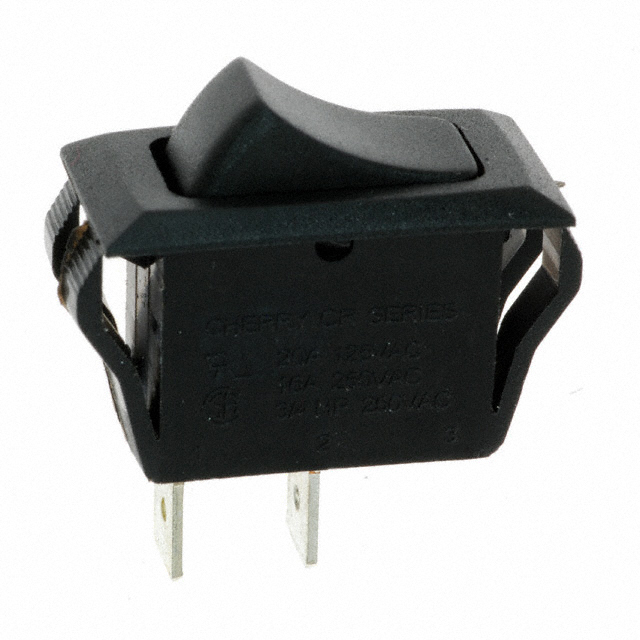

 ZF Electronics | 100000 Cycles | 6000 Cycles | 20 A | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 125 V | 85 °C | -20 ░C | Panel Mount Snap-In | SPST | No Marking | 28.5 mm | 12.1 mm | Black | On-Off | ||||

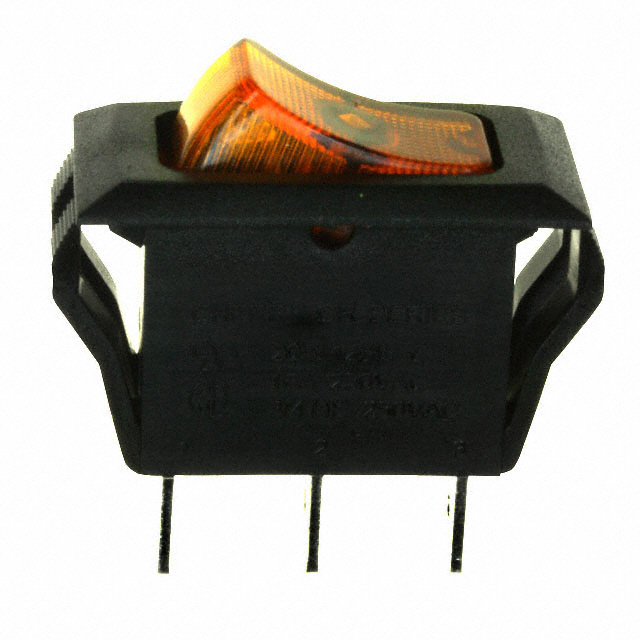

 ZF Electronics | 100000 Cycles | 6000 Cycles | 20 A | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 125 V | 125 VAC | 85 °C | -20 ░C | Panel Mount Snap-In | SPST | No Marking | 28.5 mm | 12.1 mm | Amber | On-Off | Neon Amber |
