33459 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 10-12AWG #5/16
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Insulation | Features | Terminal Type | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Length - Overall [x] | Length - Overall [x] | Termination | Mounting Type | Contact Material | Thickness | Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

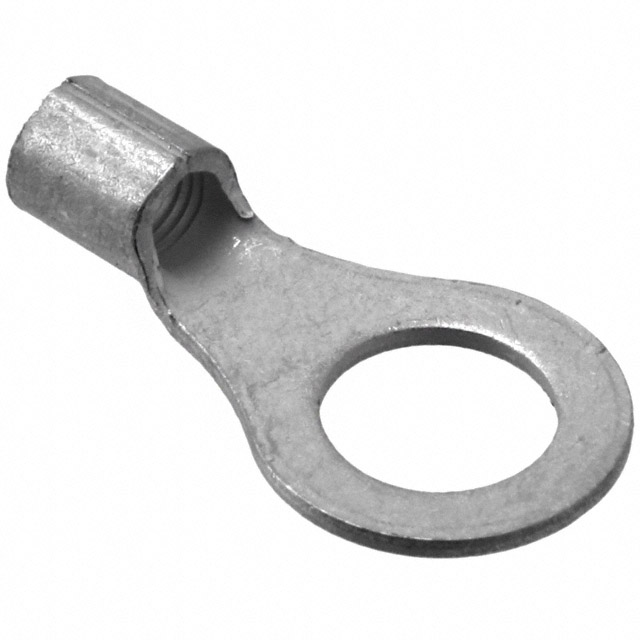

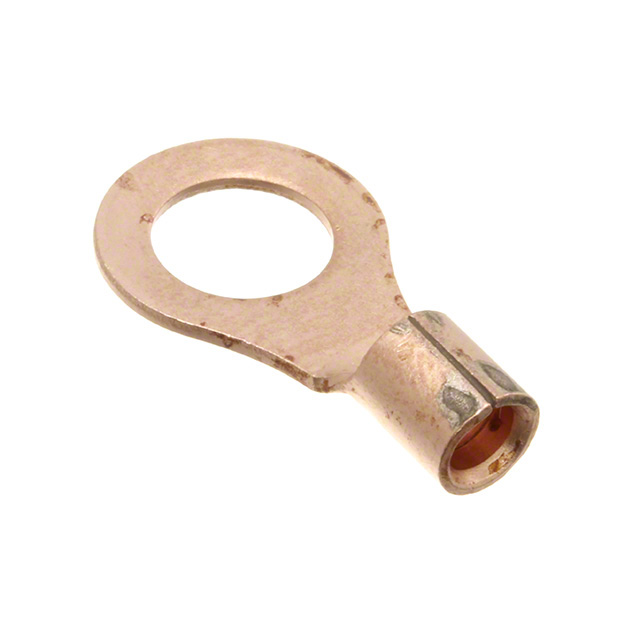

 TE Connectivity Raychem Cable Protection | 12 AWG | 10 AWG | 0.3125 Stud | Non-Insulated | Brazed Seam Serrated Termination | Circular | 13.49 mm | 0.531 " | 25.5 mm | 1.004 " | Crimp | Free Hanging (In-Line) | Copper | 0.99 mm | 0.039 in | |
 TE Connectivity Raychem Cable Protection | 12 AWG | 10 AWG | 0.3125 Stud | Non-Insulated | Brazed Seam Serrated Termination | Circular | 13.49 mm | 0.531 " | 25.5 mm | 1.004 " | Crimp | Free Hanging (In-Line) | Copper | 0.99 mm | 0.039 in | Tin |
