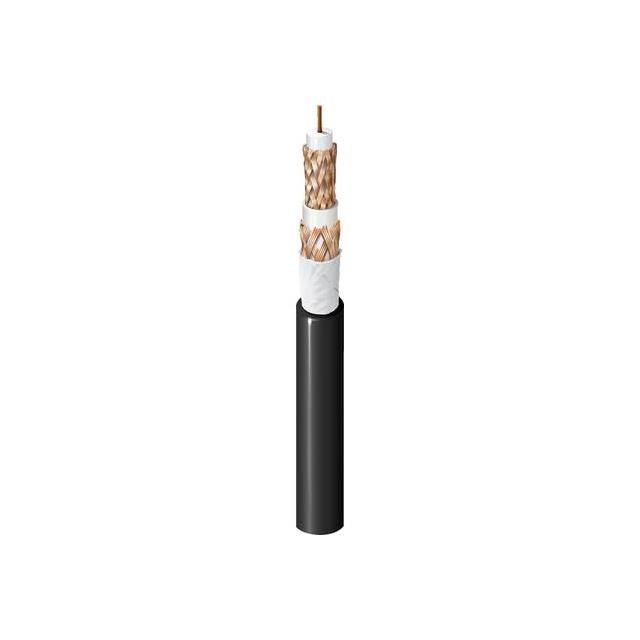

1858A Series
Manufacturer: Belden Inc.
Beta
⌘K
#15 GIFHDLDPE PVC TRIAX
| Part | VoP, Velocity of Propagation | Shield Coverage | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Jacket (Insulation) Material | Usage | Length | Length | Cable Group | Cable Type | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 78 | 95 % | Copper Bare | 0.312 in | 7.92 mm | -50 °C | 80 °C | Copper Bare | Poly-Vinyl Chloride (PVC) | Video | 1219.2 m | 4000 ' | RG-11 | Triaxial | Braid | 19 | 27 AWG | 15 AWG | Black | 13.21 mm | 0.52 in |
