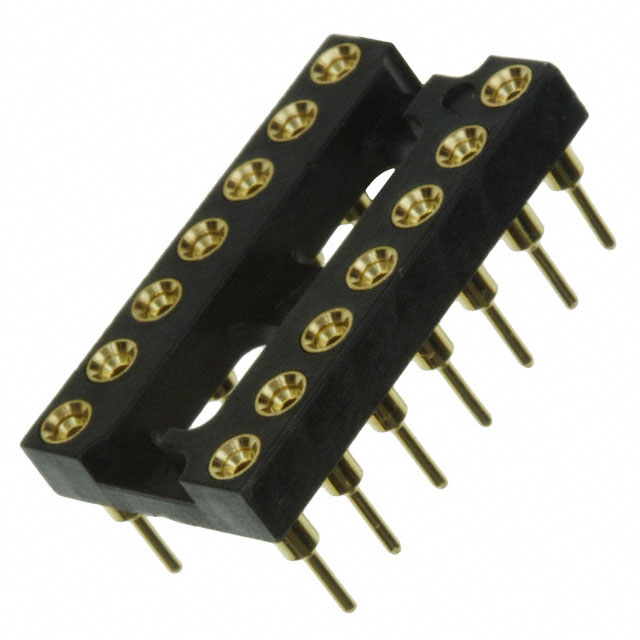

1437537 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH TACTILE
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination | Features | Number of Positions or Pins (Grid) | Type | Type | Type | Contact Finish - Mating | Pitch - Post | Pitch - Post | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions or Pins (Grid) | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Contact Material - Post [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 3 A | 10 mOhm | UL94 V-0 | Solder | Open Frame | 14 | 7.62 mm | 0.3 in | DIP | Gold | 0.1 in | 2.54 mm | Polyester | -55 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | |||||
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 10 mOhm | UL94 V-0 | Solder | Open Frame | 7.62 mm | 0.3 in | DIP | Gold | 0.1 in | 2.54 mm | Polyester | -55 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Through Hole | 3 (1 x 3) | 2.03 µm | 80 µin | Tin-Lead | Copper Alloy | ||
TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 3 A | 10 mOhm | UL94 V-0 | Solder | Open Frame | 14 | 7.62 mm | 0.3 in | DIP | Gold | 0.1 in | 2.54 mm | Polyester | -55 C | 105 ░C | Copper Alloy | 0.1 " | 2.54 mm | Through Hole |
