895-054 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 54POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Read Out	Termination	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Color	Card Type	Pitch	Pitch	Gender	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Number of Positions/Bay/Row	Features	Termination Rows	Number of Rows

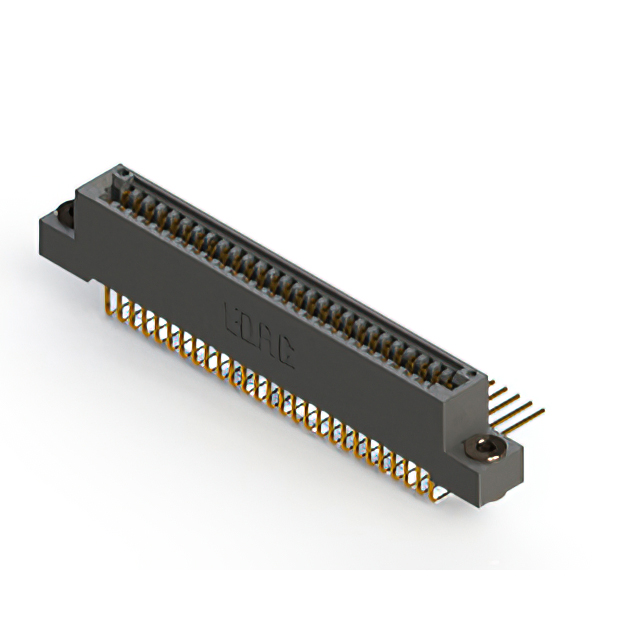

EDAC Inc. 895-054-558-203	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Solder	Right Angle Through Hole	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27

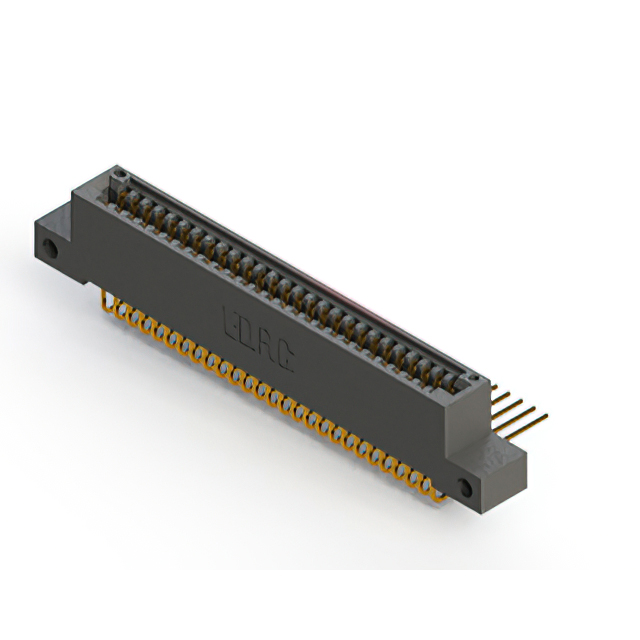

EDAC Inc. 895-054-559-212	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Solder	Right Angle Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27
EDAC Inc. 895-054-544-808	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Wire Wrap	Through Hole		4-40 Threaded Insert Top Mount Opening		Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27

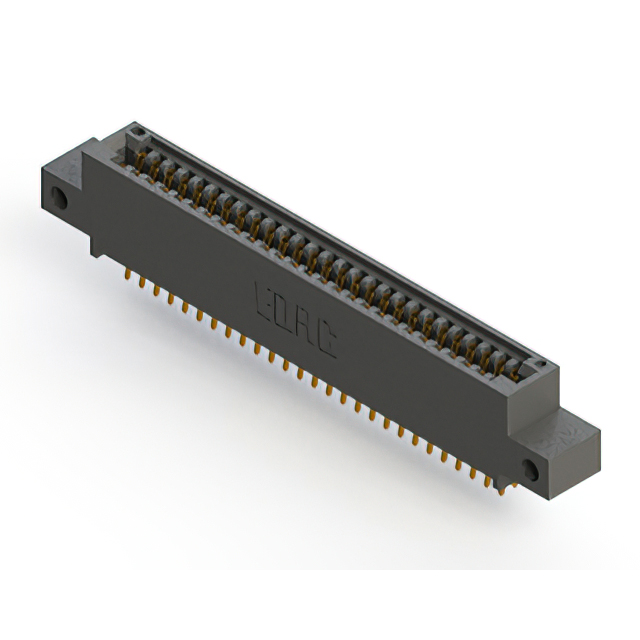

EDAC Inc. 895-054-556-512	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Solder	Board Edge Straddle Mount	0.128 "	Side Mount Opening Unthreaded	3.25 mm	Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27	Card Extender
EDAC Inc. 895-054-523-104	Polyphenylene Sulfide (PPS)		54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Single	Solder	Through Hole	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	Black	Non Specified - Single Edge	0.1 "	2.54 mm	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	54		1	1

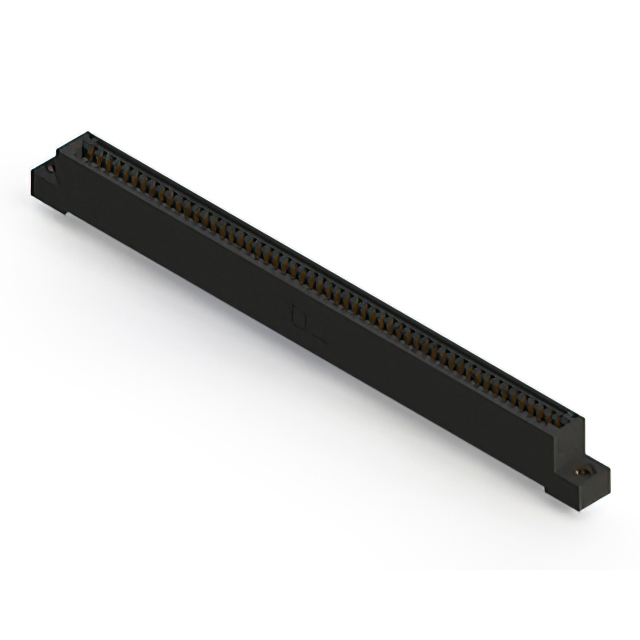

EDAC Inc. 895-054-525-107	Polyphenylene Sulfide (PPS)		54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Single	Solder	Through Hole		Flush Mount M3 Threaded Insert Top Opening		Gold	Black	Non Specified - Single Edge	0.1 "	2.54 mm	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	54		1	1

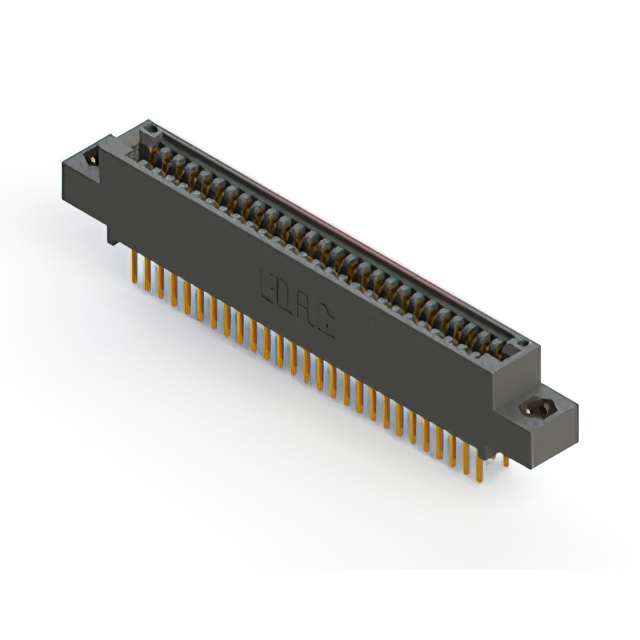

EDAC Inc. 895-054-523-508	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Solder	Through Hole		4-40 Threaded Insert Top Mount Opening		Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27

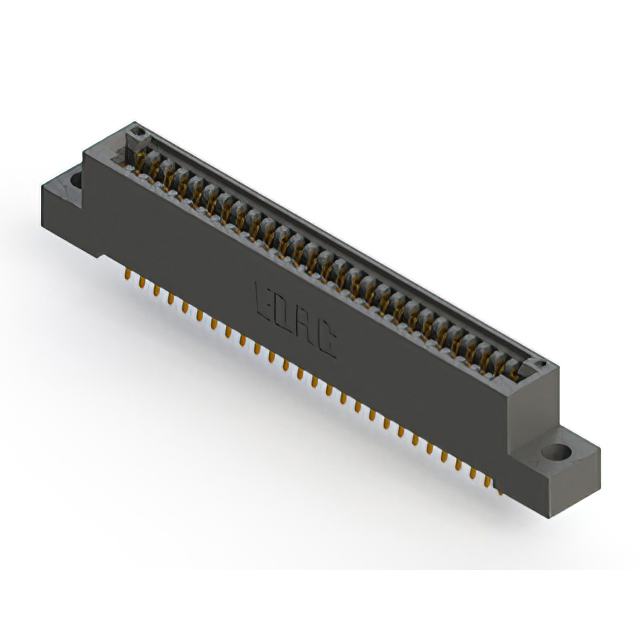

EDAC Inc. 895-054-556-204	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Solder	Board Edge Straddle Mount	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27	Card Extender
EDAC Inc. 895-054-540-104	Polyphenylene Sulfide (PPS)		54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Single	Wire Wrap	Through Hole	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	Black	Non Specified - Single Edge	0.1 "	2.54 mm	Female		0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	54		1	1
EDAC Inc. 895-054-500-212	Polyphenylene Sulfide (PPS)	2	54	0.25 Ám	10 Áin	125 °C	-40 C	Copper Alloy	Dual	Solder Eyelet(s)	Through Hole	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Gold	Black	Non Specified - Dual Edge	0.1 "	2.54 mm	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	27
