APF40 Series

Catalog

HEATSINK FORGED W/ADHESIVE TAPE

Part	Shelf Life	Type	Shape	Package Cooled	Material Finish	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Attachment Method	Material	Fin Height	Fin Height	Fin Height [custom]	Fin Height [custom]

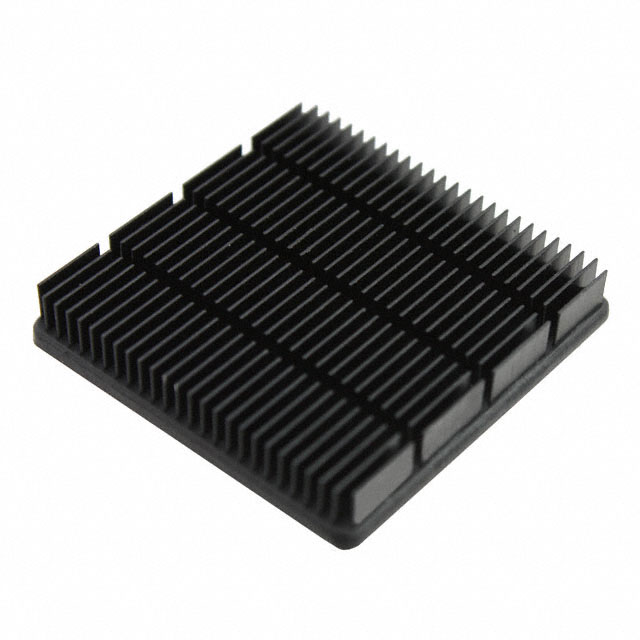

CTS Thermal Management Products APF40-40-06CB/A01	24 Months	Top Mount	Fins Square	ASIC BGA CPU LGA	Black Anodized	3.3 °C/W	1.575 in	40 mm	Thermal Tape Adhesive (Included)	Aluminum	6.35 mm	0.25 in

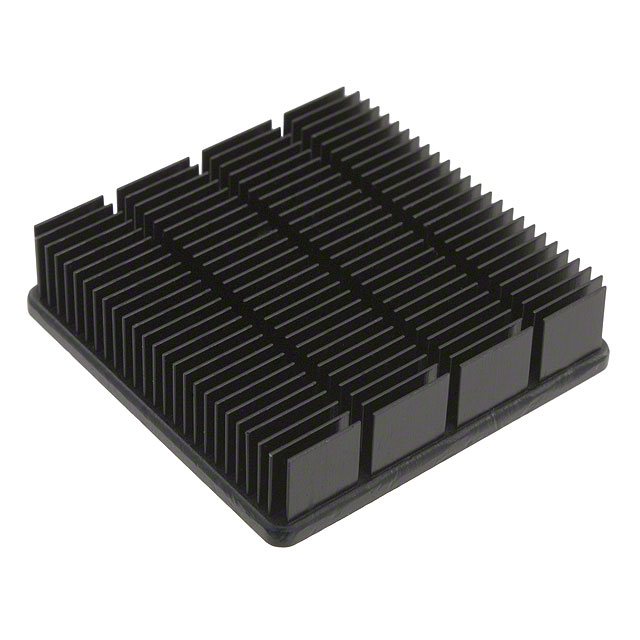

CTS Thermal Management Products APF40-40-10CB		Top Mount	Fins Square	ASIC BGA CPU LGA	Black Anodized	2.5 °C/W	1.575 in	40 mm	Thermal Tape Adhesive	Aluminum			0.37 in	9.4 mm

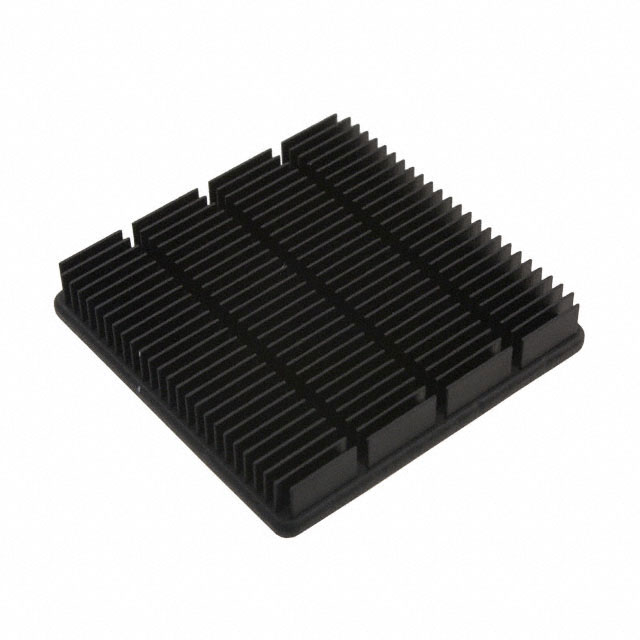

CTS Thermal Management Products APF40-40-06CB		Top Mount	Fins Square	ASIC BGA CPU LGA	Black Anodized	3.3 °C/W	1.575 in	40 mm	Thermal Tape Adhesive	Aluminum	6.35 mm	0.25 in

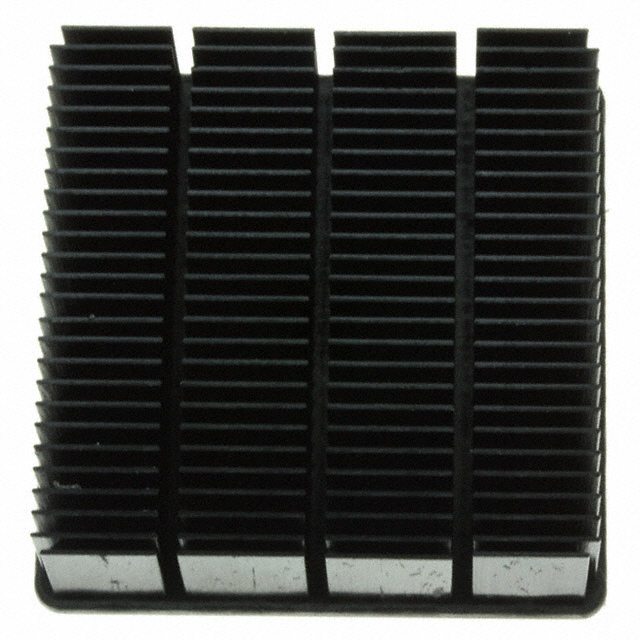

CTS Thermal Management Products APF40-40-13CB		Top Mount	Fins Square	ASIC BGA CPU LGA	Black Anodized	1.9 °C/W	1.575 in	40 mm	Thermal Tape Adhesive	Aluminum	12.7 mm	0.5 "

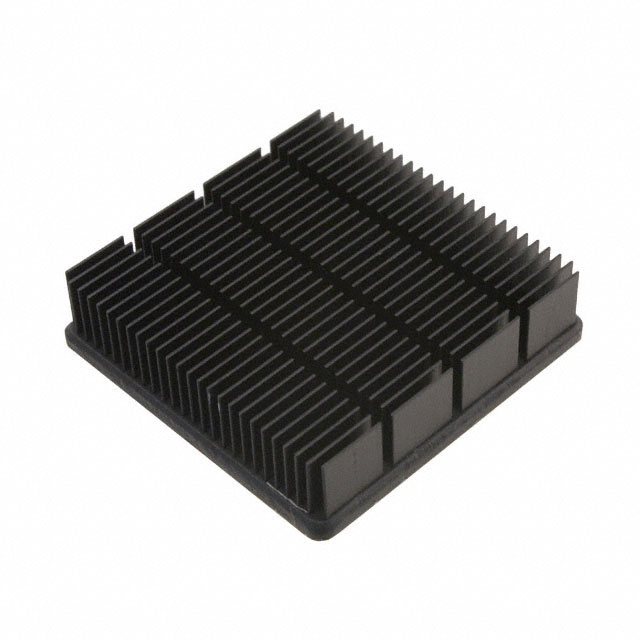

CTS Thermal Management Products APF40-40-10CB/A01	24 Months	Top Mount	Fins Square	ASIC BGA CPU LGA	Black Anodized	2.5 °C/W	1.575 in	40 mm	Thermal Tape Adhesive (Included)	Aluminum			0.37 in	9.4 mm

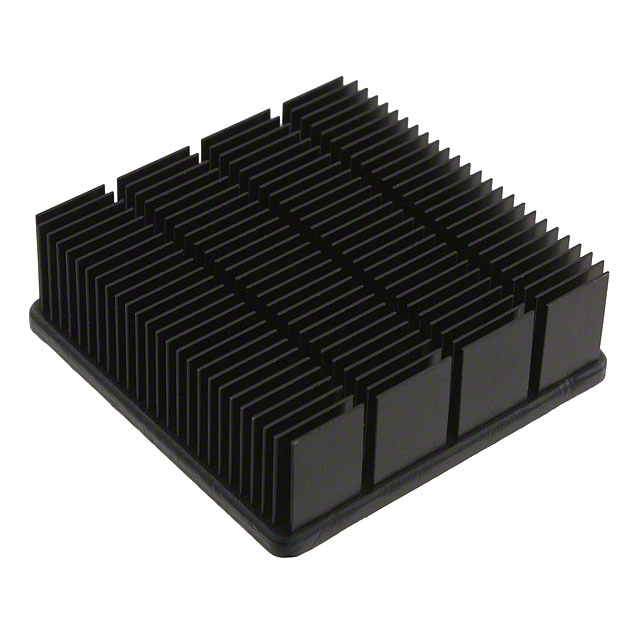

CTS Thermal Management Products APF40-40-13CB/A01	24 Months	Top Mount	Fins Square	ASIC BGA CPU LGA	Black Anodized	1.9 °C/W	1.575 in	40 mm	Thermal Tape Adhesive (Included)	Aluminum	12.7 mm	0.5 "
