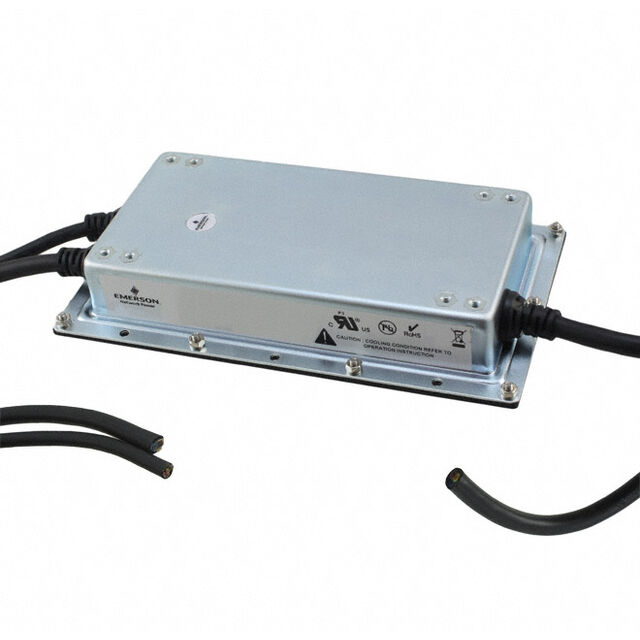

LCC250 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 20.8A 250W 11-PIN
| Part | Minimum Load Required | Applications | Voltage - Isolation | Efficiency | Type | Power (Watts) | Number of Outputs | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Output 1 | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 20.8 A | 12 V | 264 VAC | 90 VAC | |
ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 10.4 A | 24 V | 264 VAC | 90 VAC | |
 ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 20.8 A | 12 V | 264 VAC | 90 VAC | |
ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 5.2 A | 48 V | 264 VAC | 90 VAC | |
ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 5.2 A | 48 V | 264 VAC | 90 VAC | |
ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 10.4 A | 24 V | 264 VAC | 90 VAC | |
 ARTESYN / Advanced Energy | ITE (Commercial) Medical | 4000 V | 91 % | Enclosed | 250 W | 1 | CB CE | -40 °C | 85 °C | Chassis Mount | Adjustable Output Baseplate IP64 PFC Remote On/Off Remote Sense Universal Input | 37.6 mm | 7 " | 1.48 " | 101.4 mm | 177.8 mm | 4 " | 10.4 A | 24 V | 264 VAC | 90 VAC |
