TPS62A02

TPS62A02 Series

2.5V to 5.5V input, 2A high-efficiency step-down converter with forced PWM in SOT package

Manufacturer: Texas Instruments

Catalog

2.5V to 5.5V input, 2A high-efficiency step-down converter with forced PWM in SOT package

PartVoltage - Output (Max) [Max]Number of OutputsSupplier Device PackagePackage / CaseVoltage - Output (Min/Fixed)Operating Temperature [Min]Operating Temperature [Max]Frequency - SwitchingTopologyVoltage - Input (Min) [Min]Synchronous RectifierVoltage - Input (Max) [Max]Output ConfigurationMounting TypeCurrent - OutputOutput TypeFunction
SOT-23-Thin
Texas Instruments
TPS62A02APDDCR
5.5 V
1
SOT-23-THIN
SOT-23-6 Thin
TSOT-23-6
0.6 V
-40 C
125 °C
2.4 MHz
Buck
2.5 V
5.5 V
Positive
Surface Mount
2 A
Adjustable
Step-Down

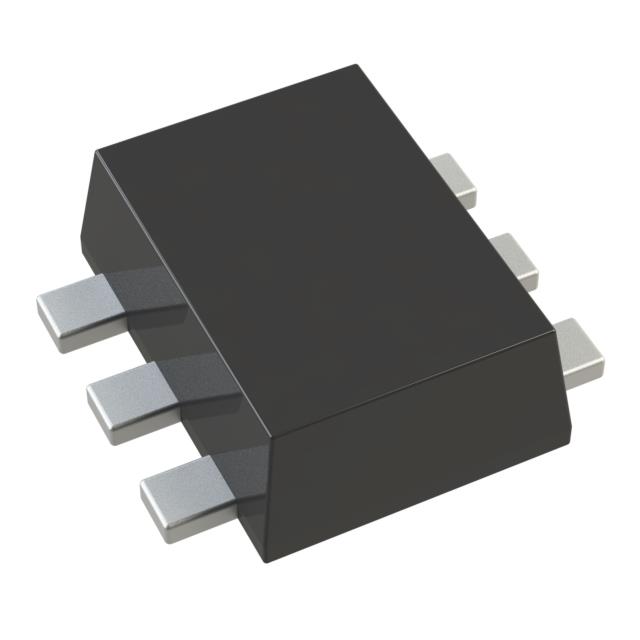

SOT 563
Texas Instruments
TPS62A02ADRLR
5.5 V
1
SOT-563
SOT-563
SOT-666
0.6 V
-40 C
125 °C
2.4 MHz
Buck
2.5 V
5.5 V
Positive
Surface Mount
2 A
Adjustable
Step-Down
TPS62A02NDRLR
Texas Instruments
TPS62A02NDRLR
5.5 V
1
SOT-563
SOT-563
SOT-666
0.6 V
-40 C
125 °C
2.4 MHz
Buck
2.5 V
5.5 V
Positive
Surface Mount
2 A
Adjustable
Step-Down
SOT-23-THN (DDC)
Texas Instruments
TPS62A02PDDCR
5.5 V
1
SOT-23-THIN
SOT-23-6 Thin
TSOT-23-6
0.6 V
-40 C
125 °C
2.4 MHz
Buck
2.5 V
5.5 V
Positive
Surface Mount
2 A
Adjustable
Step-Down
SOT-5X3 (DRL)
Texas Instruments
TPS62A02DRLR
5.5 V
1
SOT-563
SOT-563
SOT-666
0.6 V
-40 C
125 °C
2.4 MHz
Buck
2.5 V
5.5 V
Positive
Surface Mount
2 A
Adjustable
Step-Down

Description
