AA Series

Catalog

THERMOELECTRIC ASSEMBLIES AA-060-24-23-00-10

Part	Fan Location	Voltage	Heat Transfer Type	Dimensions - Overall [y]	Dimensions - Overall [z]	Dimensions - Overall [x]	Current	Weight	Weight	Power - Cooling	Power - Input	Operating Temperature [Min]	Operating Temperature [Max]

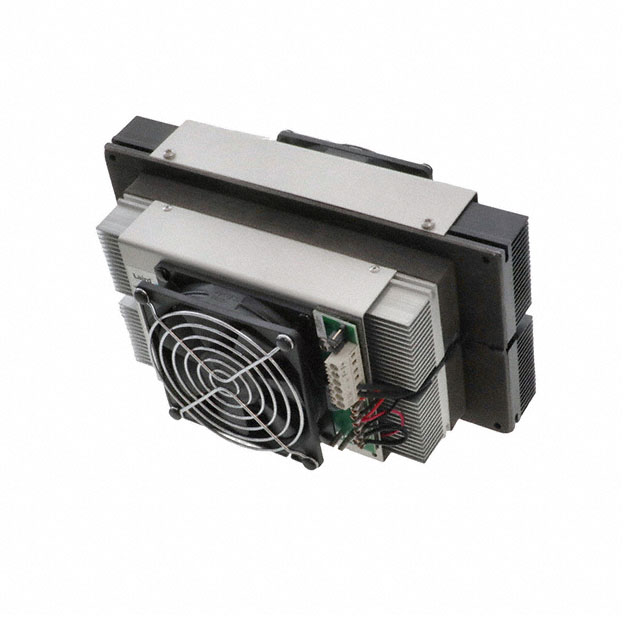

Laird Thermal Systems, Inc. AA-060-24-23-00-10	Cold Side Warm Side	24 V	Air to Air	122 mm	146.9 mm	230 mm

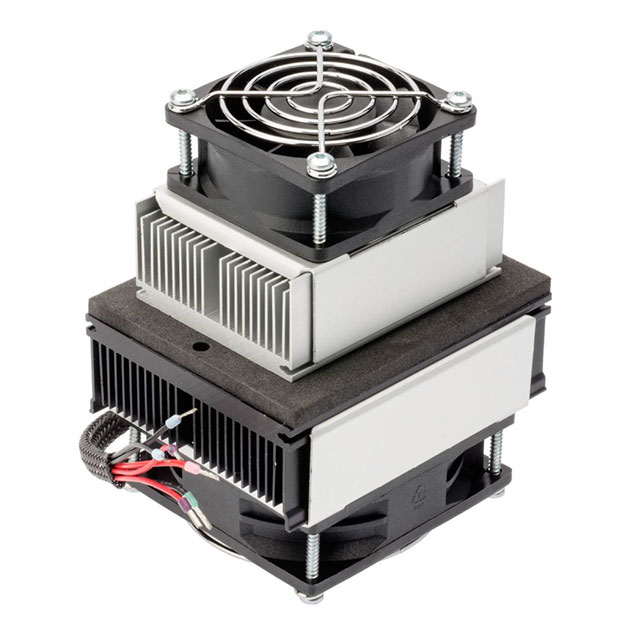

Laird Thermal Systems, Inc. AA-034-12-22-00-00	Cold Side Warm Side	12 V	Air to Air	102.2 mm	124.3 mm	120 mm	3.5 A	907.2 g	2 lbs	33 W	42 W	-10 °C	49 °C

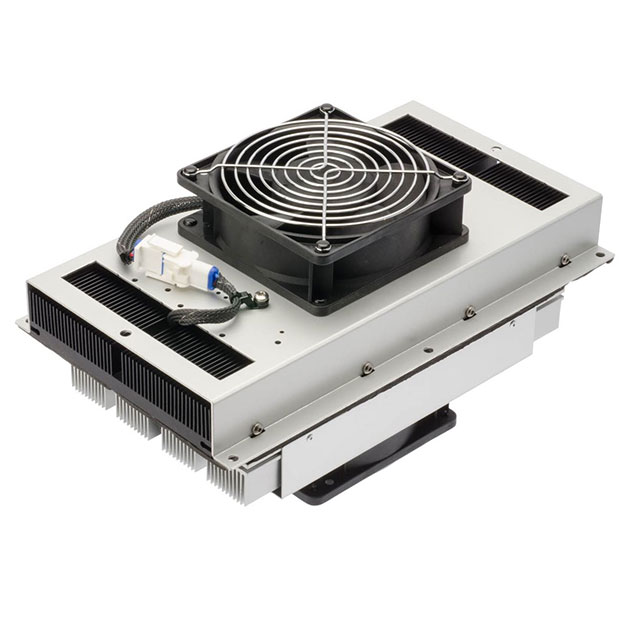

Laird Thermal Systems, Inc. AA-150-24-44-00-XX	Cold Side Warm Side	24 V	Air to Air	180 mm	167 mm	300 mm	7.9 A	5.4 kg	12 lbs	143 W		-40 C	55 °C
