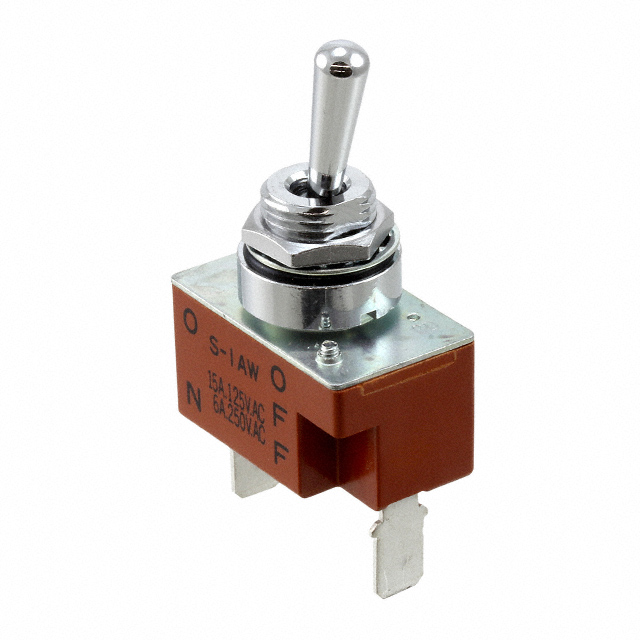

S1AW Series
Manufacturer: NKK Switches
Beta
⌘K
TOGGLE SWITCH, IP68, ON-NONE-OFF, SPST, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT
| Part | Electrical Life | Ingress Protection | Actuator Type | Termination Style | Voltage Rating - AC | Switch Function | Illumination | Voltage Rating - DC | Features | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Circuit | Bushing Thread | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | IP68 - Dust Tight Waterproof | Standard Round | Solder Lug | 125 V | On-Off | Non-Illuminated | 30 V | Waterproof Boot | 15 A 20 A | 12.5 mm | Panel Mount | -30 ░C | 70 °C | 17.5 mm | SPST | M12 x 1 | |
 NKK Switches | 25000 Steps | IP67 - Dust Tight Waterproof | Standard Round | Quick Connect - 0.250" (6.3mm) | 125 V | On-Off | Non-Illuminated | 30 V | 15 A 20 A | 12.5 mm | Panel Mount | -30 ░C | 70 °C | 17.5 mm | SPST | M12 x 1 | Brass Chrome Plated | |
 NKK Switches | 25000 Steps | IP67 - Dust Tight Waterproof | Standard Round | Wire Leads | 125 V | On-Off | Non-Illuminated | 30 V | 15 A 20 A | 12.5 mm | Panel Mount | -30 ░C | 70 °C | 17.5 mm | SPST | M12 x 1 | Brass Chrome Plated |
