284507 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 12POS STR 3.81MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Strip Length [Min]	Wire Strip Length [Max]	Current - UL	Contact Mating Finish	Number of Positions	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Termination Style	Insulation Height	Insulation Height	Material Flammability Rating	Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Mounting Type	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Features	Positions Per Level	Number of Levels	Screw Size	Color	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

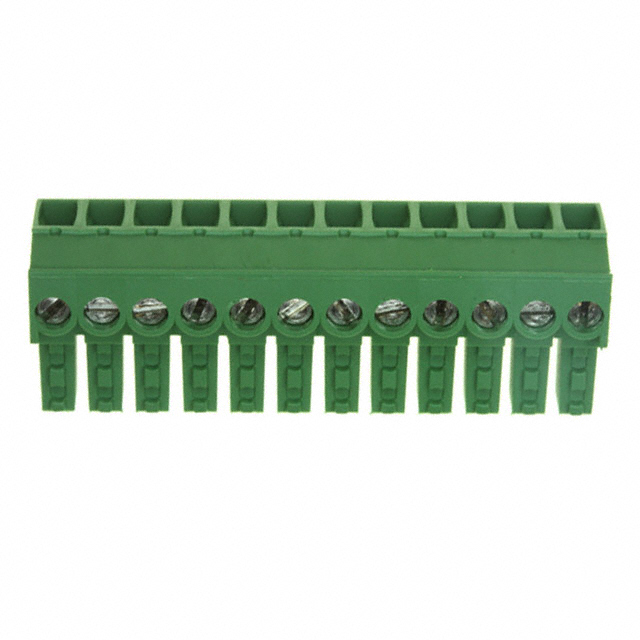

TE Connectivity Raychem Cable Protection 1-284507-2	-40 °C	110 °C	5 mm	6 mm	11 A	Tin	12	Phosphor Bronze	14 AWG	30 AWG	300 V	Screw - Rising Cage Clamp	0.437 in	11.1 mm	UL94 V-0	Plug Female Sockets	2 mm˛	0.05 mm˛	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	0.15 in	3.81 mm	Side Stacking	12	1	M2	Green
TE Connectivity Raychem Cable Protection 2-284507-0	-40 °C	110 °C	5 mm	6 mm	11 A	Tin	20	Phosphor Bronze	14 AWG	30 AWG	300 V	Screw - Rising Cage Clamp	0.437 in	11.1 mm	UL94 V-0	Plug Female Sockets	2 mm˛	0.05 mm˛	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	0.15 in	3.81 mm	Side Stacking	20	1	M2	Green
TE Connectivity Raychem Cable Protection 1-284507-6	-40 °C	110 °C	5 mm	6 mm	11 A	Tin		Phosphor Bronze	14 AWG	30 AWG	300 V	Screw - Rising Cage Clamp	0.437 in	11.1 mm	UL94 V-0	Plug Female Sockets			Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	0.15 in	3.81 mm	Side Stacking	16	1	M2	Green	16	0.05 mm²	2 mm²

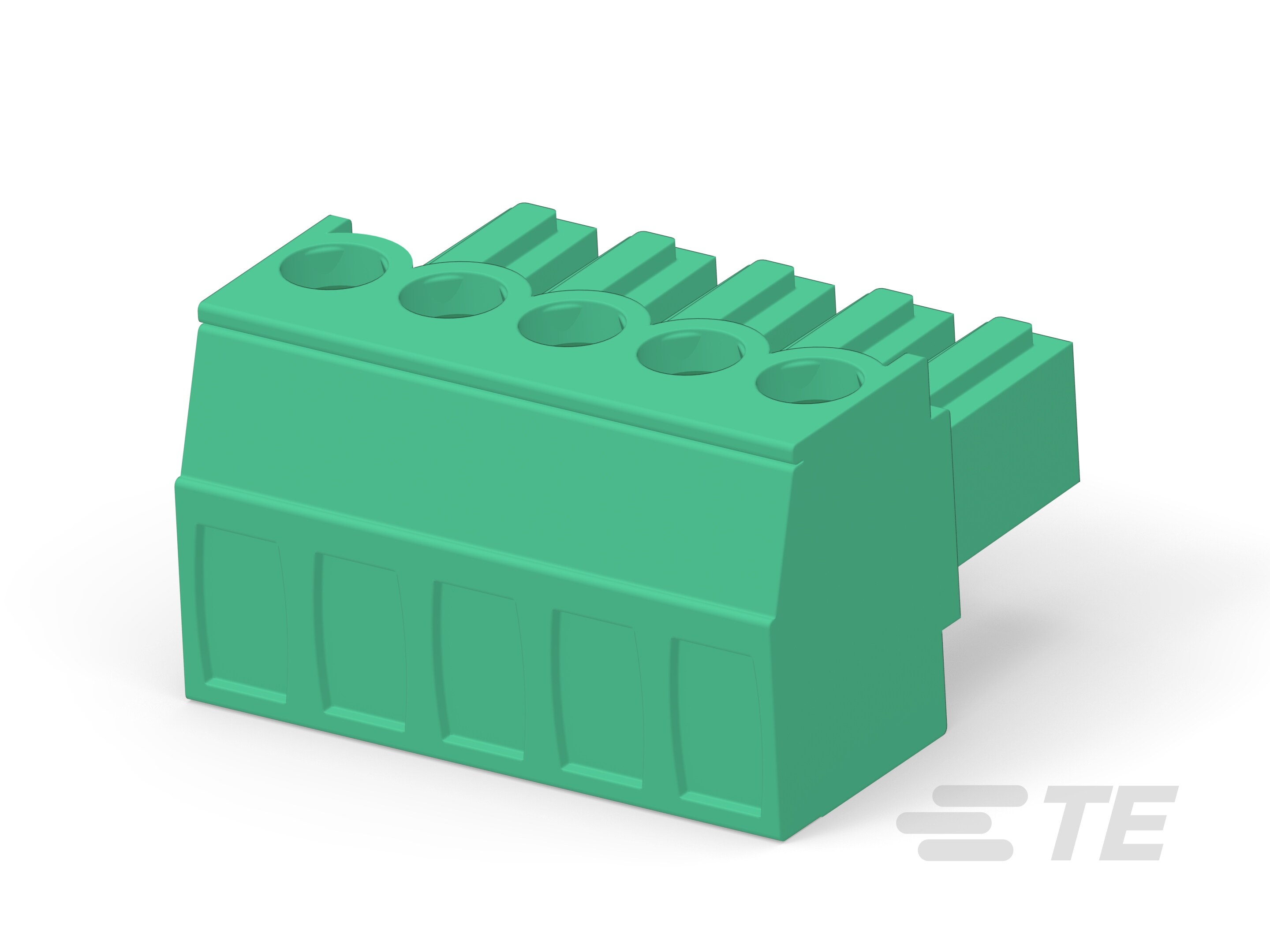

TE Connectivity Raychem Cable Protection 284507-5	-40 °C	110 °C	5 mm	6 mm	11 A	Tin		Phosphor Bronze	14 AWG	30 AWG	300 V	Screw - Rising Cage Clamp	0.437 in	11.1 mm	UL94 V-0	Plug Female Sockets	2 mm˛	0.05 mm˛	Free Hanging (In-Line)	2.7 Lb-In	0.31 Nm	0.15 in	3.81 mm	Side Stacking	5	1	M2	Green
