147324 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

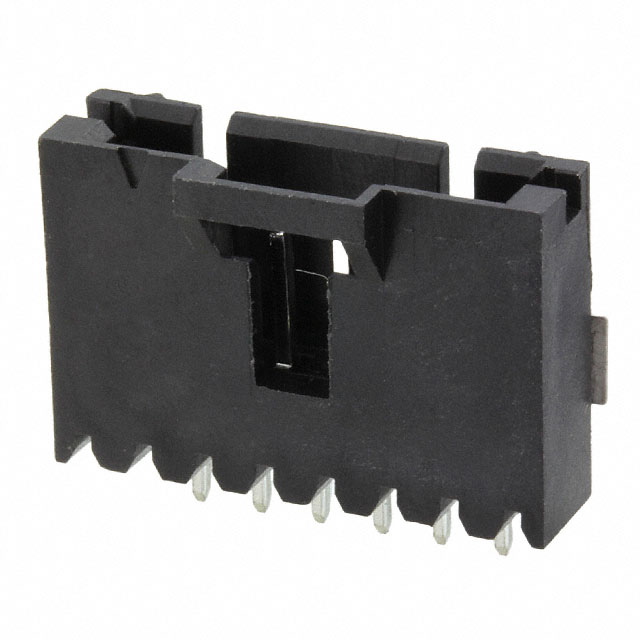

CONN HEADER SMD R/A 19POS 2.54MM

Part	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Fastening Type	Style	Number of Positions Loaded	Mounting Type	Contact Material	Contact Type	Features	Contact Shape	Connector Type	Contact Finish - Post	Material Flammability Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions	Shrouding	Insulation Color	Contact Finish - Mating	Number of Positions
TE Connectivity Raychem Cable Protection 6-147324-8	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1	19	Shrouded - 4 Wall	Black
TE Connectivity Raychem Cable Protection 147324-2	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin-Lead	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1		Shrouded - 4 Wall	Black	Tin-Lead
TE Connectivity Raychem Cable Protection 2-147324-0	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin-Lead	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1	21	Shrouded - 4 Wall	Black	Tin-Lead
TE Connectivity Raychem Cable Protection 6-147324-6	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1		Shrouded - 4 Wall	Black
TE Connectivity Raychem Cable Protection 2-147324-2	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin-Lead	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1	23	Shrouded - 4 Wall	Black	Tin-Lead
TE Connectivity Raychem Cable Protection 5-147324-5	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1	6	Shrouded - 4 Wall	Black
TE Connectivity Raychem Cable Protection 6-147324-2	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1	13	Shrouded - 4 Wall	Black
TE Connectivity Raychem Cable Protection 1-147324-6	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin-Lead	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1		Shrouded - 4 Wall	Black	Tin-Lead
TE Connectivity Raychem Cable Protection 2-147324-3	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin-Lead	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1	24	Shrouded - 4 Wall	Black	Tin-Lead
TE Connectivity Raychem Cable Protection 1-147324-5	0.23 in	5.84 mm	-65 ░C	105 ░C	2.54 çm	100 çin	Automotive General Purpose Medical Telecommunications	Latch Holder	Board to Board Cable	All	Surface Mount Right Angle	Brass	Male Pin	Board Lock Keying Slot Solder Retention	Square	Header	Tin-Lead	UL94 V-0	Solder	2.54 µm	100 µin	Thermoplastic	3 A	0.1 in	2.54 mm	1		Shrouded - 4 Wall	Black	Tin-Lead	16
