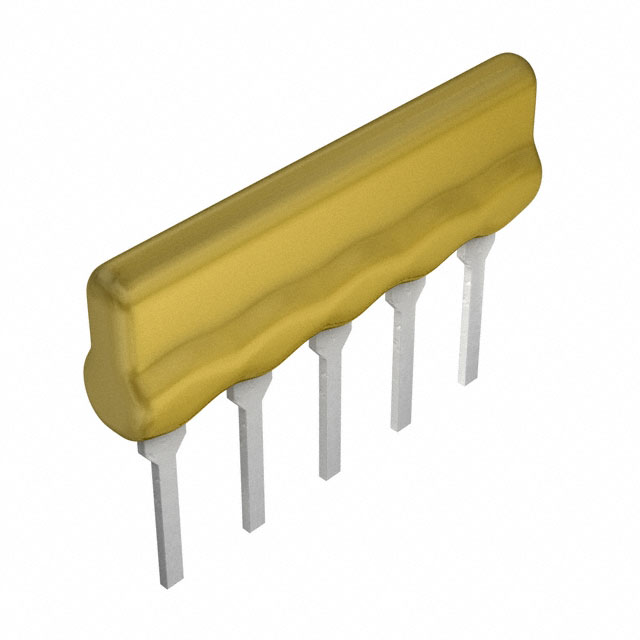

4605X Series
Manufacturer: Bourns Inc.
Beta
⌘K

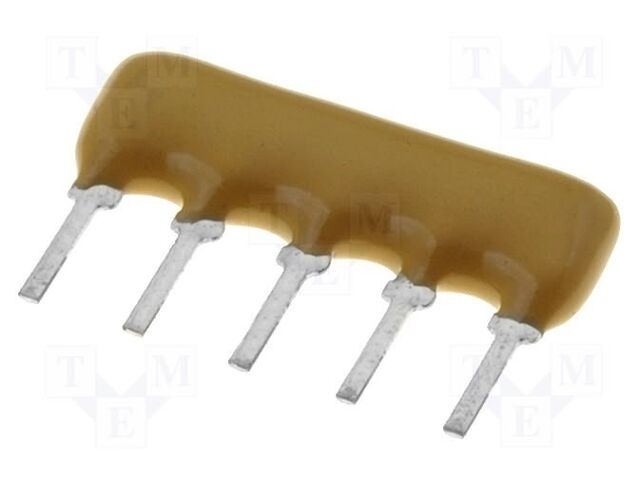

RESISTOR NETWORK,THICK FILM,27KOHMS,100WV,2+/-% TOL,-100,100PPM-TC,5010-CASE ROHS COMPLIANT: YES
| Part | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance (Ohms) [custom] | Number of Resistors | Power Per Element | Number of Pins | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Circuit Type | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Package / Case | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 27 kOhms | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | ||
 Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 3.9 kOhms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 270 Ohms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 2.2 kOhms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 62 Ohms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 82 kOhms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 150 Ohms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 390 Ohms | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 6.8k | ||
Bourns Inc. | 100 ppm/°C | 12.65 mm | 0.098 in | 0.498 " | 2.49 mm | 4 | 200 mW | 5 | Through Hole | 5.08 mm | 0.2 in | 5-SIP | Bussed | -55 C | 125 °C | 2 % | 5-SIP | 680 kOhms |
