23S Series

Catalog

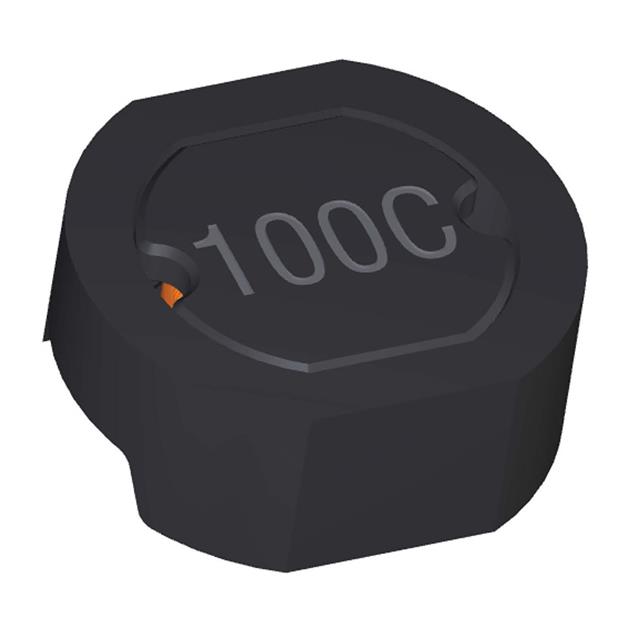

POWER INDUCTOR (SMD), 56 ΜH, 500 MA, SHIELDED, 2300 SERIES

Part	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Inductance Frequency - Test	Package / Case	Inductance	Type	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Murata Electronics 23S560C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	0.5 A	1 kHz	Nonstandard	56 µH	Wirewound	509 mOhm
Murata Electronics 23S101C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	0.37 A	1 kHz	Nonstandard	100 µH	Wirewound		782 mOhm
Murata Electronics 23S100C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	1.18 A	1 kHz	Nonstandard	10 µH	Wirewound		87 mOhm
Murata Electronics 23S180C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	880 mA	1 kHz	Nonstandard	18 µH	Wirewound		143 mOhm
Murata Electronics 23S2R2C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	2.1 A	1 kHz	Nonstandard	2.2 µH	Wirewound		25 mOhm
Murata Electronics 23S330C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	650 mA	1 kHz	Nonstandard	33 µH	Wirewound		241 mOhm
Murata Electronics 23S151C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	0.3 A	1 kHz	Nonstandard	150 µH	Wirewound	1.19 Ohm
Murata Electronics 23S470C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	0.54 A	1 kHz	Nonstandard	47 µH	Wirewound		460 mOhm
Murata Electronics 23S6R8C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	1.4 A	1 kHz	Nonstandard	6.8 µH	Wirewound		64 mOhm
Murata Electronics 23S150C	Shielded	0.126 in	3.2 mm	Surface Mount	0.244 " 6.2 mm	0.22 in 5.6 mm	85 °C	-40 C	960 mA	1 kHz	Nonstandard	15 µH	Wirewound		131 mOhm
