83562 Series
Manufacturer: Belden Inc.
Beta
⌘K

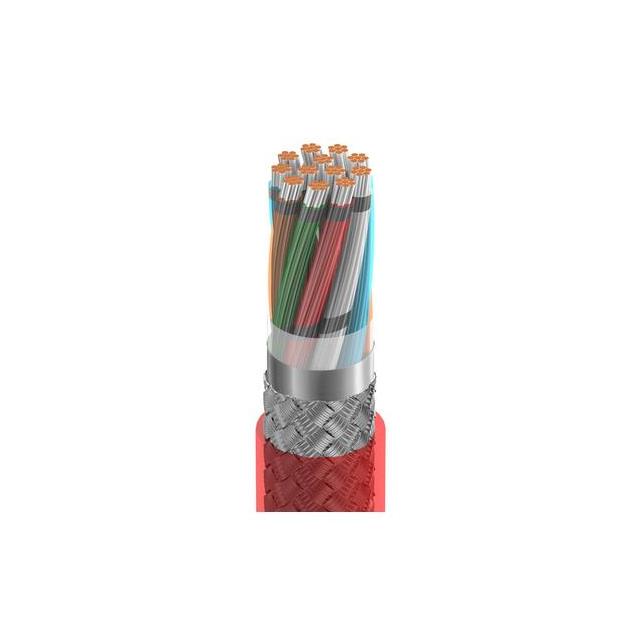

CABLE 12CON 22AWG RED SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Number of Conductors | Ratings | Voltage | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Fluorinated Ethylene-Propylene (FEP) | 12 | UL Style CMP | 300 VDC | Multi-Conductor | 30 AWG | 7 | Fluorinated Ethylene-Propylene (FEP) Plenum | 0.381 mm | 0.015 in | Audio Control Instrumentation | 304.8 m | 1000 ft | Copper Tinned | 5.94 mm | 0.234 in | Braid Foil | 22 AWG | Red | -70 °C | 200 °C |
