222CMV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Switch Function	Circuit	Actuator Orientation	Features	Illumination	Termination Style	Actuator Type	Contact Rating @ Voltage	Mounting Type	Outline [x]	Outline [y]	Operating Force	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]

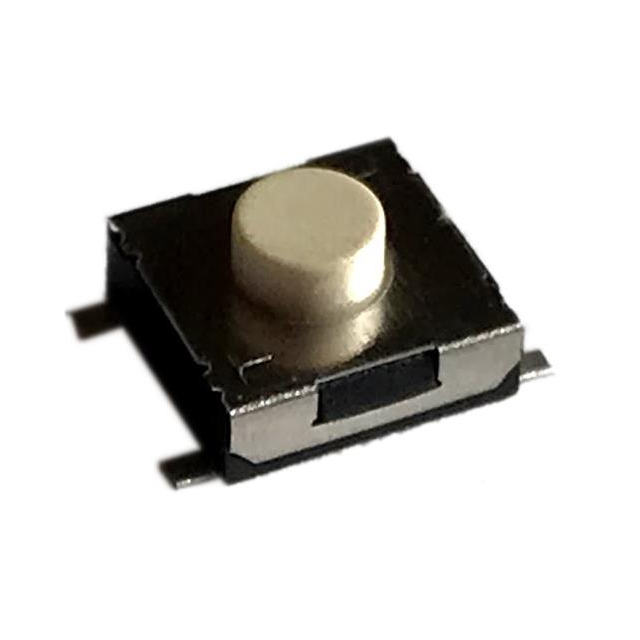

CTS Electrocomponents 222CMVBBR	0.25 mm	500000 Cycles	Off-Mom	SPST-NO	Top Actuated	Tactile Feedback	Non-Illuminated	Gull Wing	Standard	0.05 A 12 VDC	Surface Mount	6.2 mm	6.2 mm	260 gf	3.4 mm	85 °C	-40 C

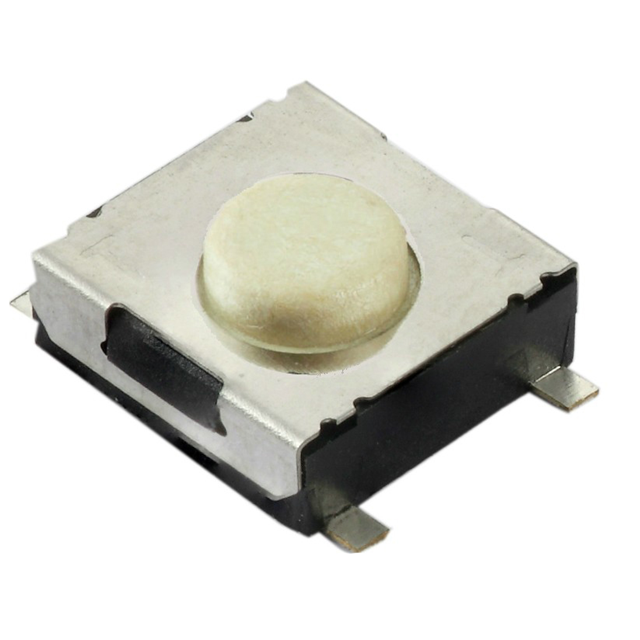

CTS Electrocomponents 222CMVCBR	0.25 mm	500000 Cycles	Off-Mom	SPST-NO	Top Actuated	Tactile Feedback	Non-Illuminated	Gull Wing	Standard	0.05 A 12 VDC	Surface Mount	6.2 mm	6.2 mm	260 gf		85 °C	-40 C	3.1 mm

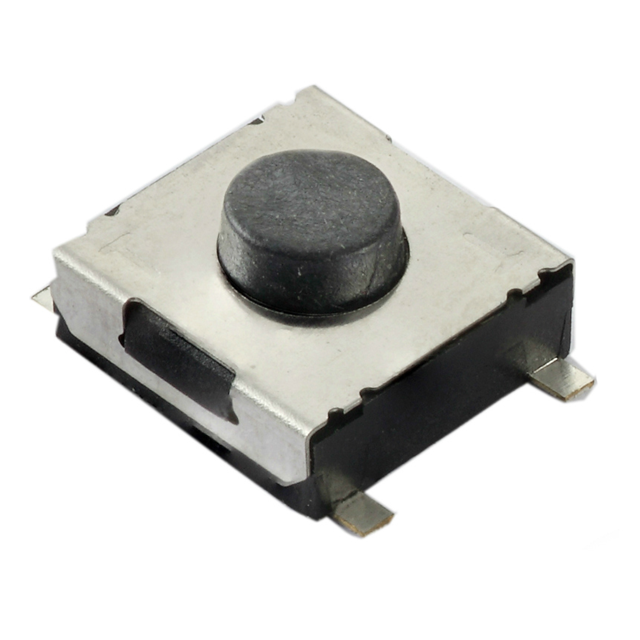

CTS Electrocomponents 222CMVBAR	0.25 mm	1000000 Cycles	Off-Mom	SPST-NO	Top Actuated	Tactile Feedback	Non-Illuminated	Gull Wing	Standard	0.05 A 12 VDC	Surface Mount	6.2 mm	6.2 mm	160 gf	3.4 mm	85 °C	-40 C
