ACA5-20PC Series

Digital Panel Meters 0-1000A input range 3 1/2 Digit Red LED

Manufacturer: Murata Electronics

Catalog

Digital Panel Meters 0-1000A input range 3 1/2 Digit Red LED

Catalog

Digital Panel Meters 0-1000A input range 3 1/2 Digit Red LED

Part	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Mounting Type	Measuring Type	Measuring Range [Min]	Measuring Range [Max]	Type	Number of Characters Per Row [custom]	Features	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Characters - Height [custom]	Display Characters - Height [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style
Murata Electronics ACA5-20PC-4-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	150 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal

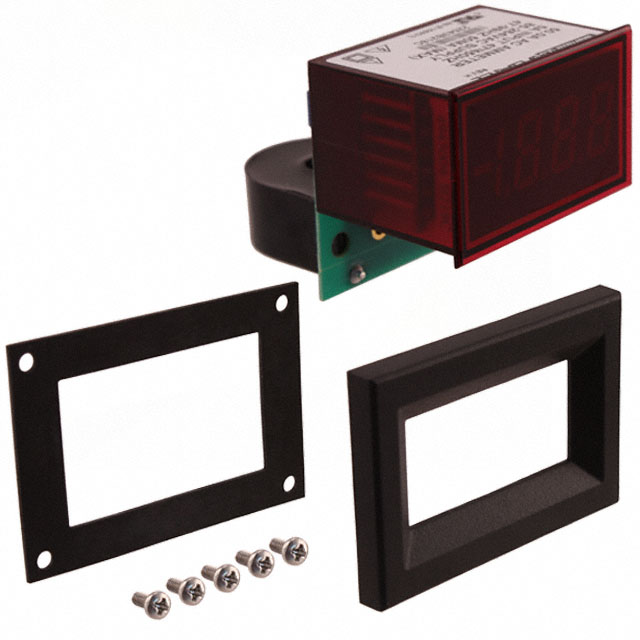

Murata Electronics ACA5-20PC-1-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	50 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal

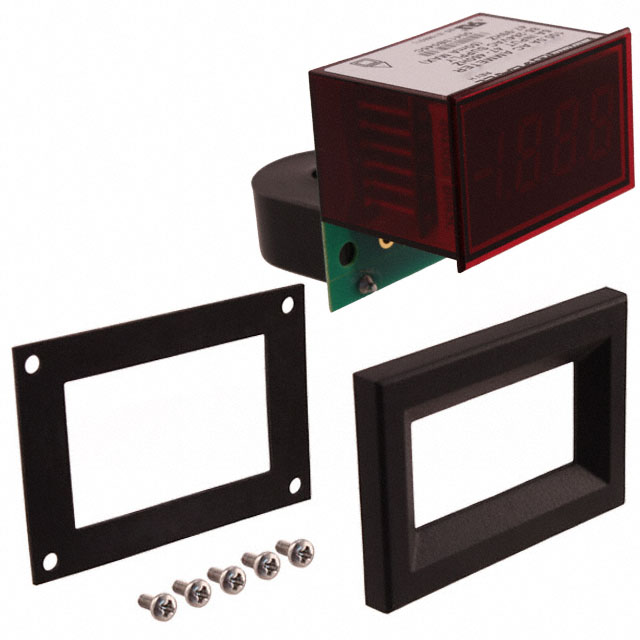

Murata Electronics ACA5-20PC-3-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	100 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
Murata Electronics ACA5-20PC-3-DC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	100 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	40 VDC	4.75 V	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal

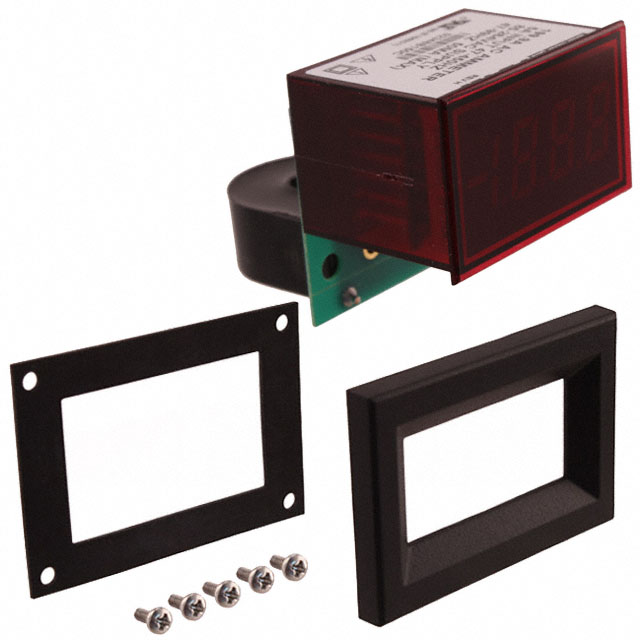

Murata Electronics ACA5-20PC-5-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	199.9 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
Murata Electronics ACA5-20PC-9-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	500 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
Murata Electronics ACA5-20PC-4-DC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	150 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	40 VDC	4.75 V	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
Murata Electronics ACA5-20PC-2-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	75 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
Murata Electronics ACA5-20PC-8-AC1-RL-C	0 °C	60 °C	35.83 g	0.079 lb	Panel Mount - Bezel	Current	0 A	400 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
Murata Electronics ACA5-20PC-8-AC1-RL-C	0 °C	60 °C			Panel Mount - Bezel	Current	0 A	400 A	Ammeter	3.5	Built In Current Transformer (Secondary)	LED Red Characters	264 VAC	85 VAC/DC	0.37 in	9.4 mm	33.93 mm	21.29 mm	Screw Terminal
