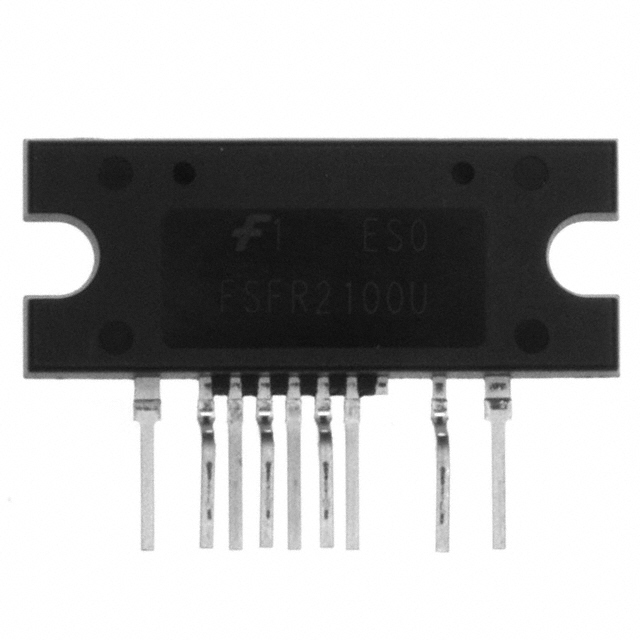

FSFR2100 Series

Catalog

IC OFFLINE SW HALF-BRIDGE 9SIP

Part	Voltage - Start Up	Duty Cycle	Frequency - Switching [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown	Control Features	Power (Watts)	Topology	Fault Protection	Package / Case	Package / Case	Output Isolation	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]
ON Semiconductor FSFR2100XS	12.5 V	50 %	300 kHz	9-SIP	Through Hole	-40 °C	130 °C	500 V	Frequency Control	400 W	Half-Bridge	Current Limiting Over Temperature Over Voltage	10-SIP Module Formed Leads	9 PC Pad	Isolated	10 V	25 V
ON Semiconductor FSFR2100US	12.5 V	50 %	300 kHz	9-SIP	Through Hole	-40 °C	130 °C	500 V	Frequency Control	400 W	Half-Bridge	Current Limiting Over Temperature Over Voltage	10-SSIP Module 9 Leads Formed Leads		Isolated	10 V	25 V
ON Semiconductor FSFR2100	14.5 V	50 %	300 kHz	9-SIP	Through Hole	-40 °C	130 °C	600 V	Frequency Control	450 W	Half-Bridge	Current Limiting Over Load Over Temperature Over Voltage	10-SIP Module Formed Leads	9 PC Pad	Isolated	11.3 V	25 V
