PEC33 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 66POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Insulation Color	Material Flammability Rating	Number of Positions	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Type	Shrouding	Current Rating (Amps)	Number of Positions Loaded	Contact Material	Insulation Height	Insulation Height	Style	Termination	Contact Length - Mating	Contact Length - Mating	Fastening Type	Connector Type	Mounting Type	Insulation Material	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Positions [custom]	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
Sullins Connector Solutions PEC33DABN	2.54 µm	100 µin	2	Black	UL94 V-0	66	0.56 in	14.22 mm	0.1 in	2.54 mm	-65 ░C	125 °C	5.84 mm	0.23 "	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm

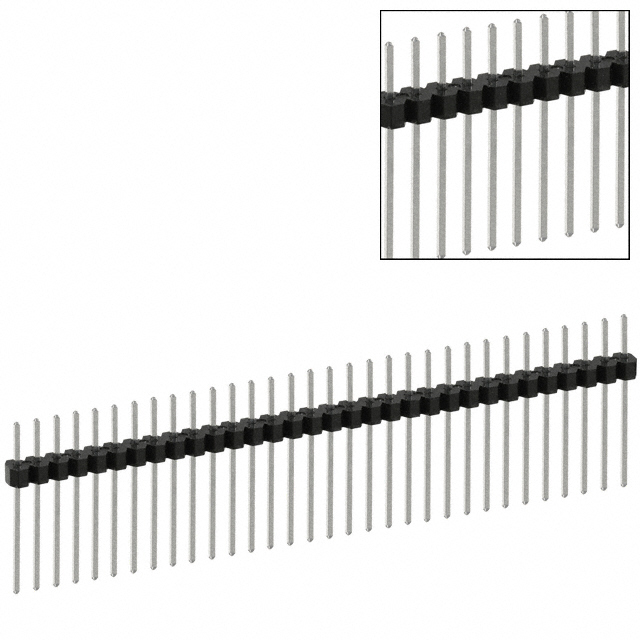

Sullins Connector Solutions PEC33SAFN	2.54 µm	100 µin		Black	UL94 V-0		0.95 in	24.13 mm			-65 ░C	125 °C			Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm	15.75 mm	0.62 "	33	1

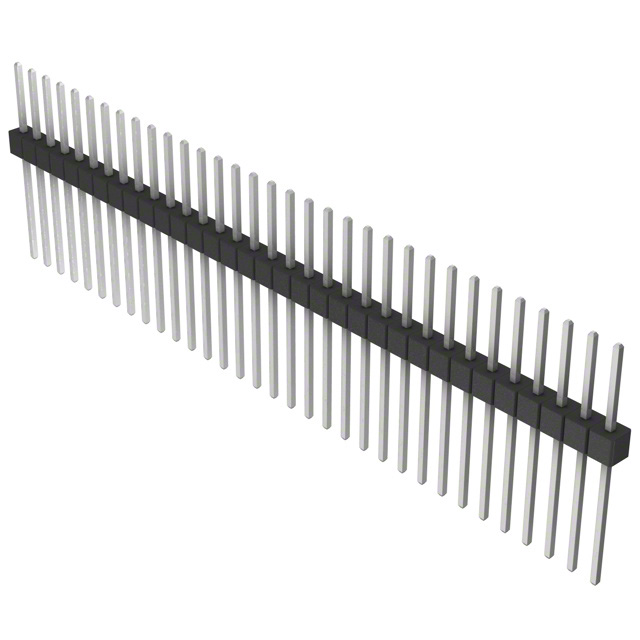

Sullins Connector Solutions PEC33SFEN	2.54 µm	100 µin		Black	UL94 V-0		0.938 in	23.83 mm			-65 ░C	125 °C	13.21 mm	0.52 in	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Solder	0.318 in	8.08 mm	Push-Pull	Header Breakaway	Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm			33	1

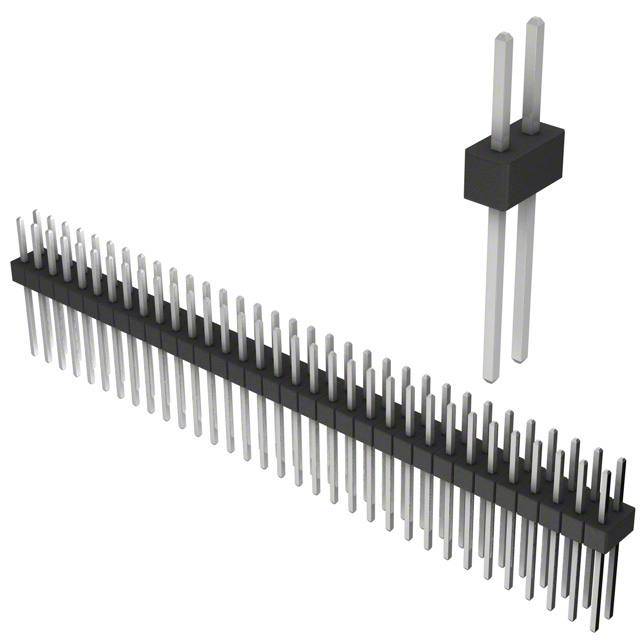

Sullins Connector Solutions PEC33DADN	2.54 µm	100 µin	2	Black	UL94 V-0	66			0.1 in	2.54 mm	-65 ░C	125 °C	10.67 mm	0.42 in	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm					19.05 mm	0.75 in

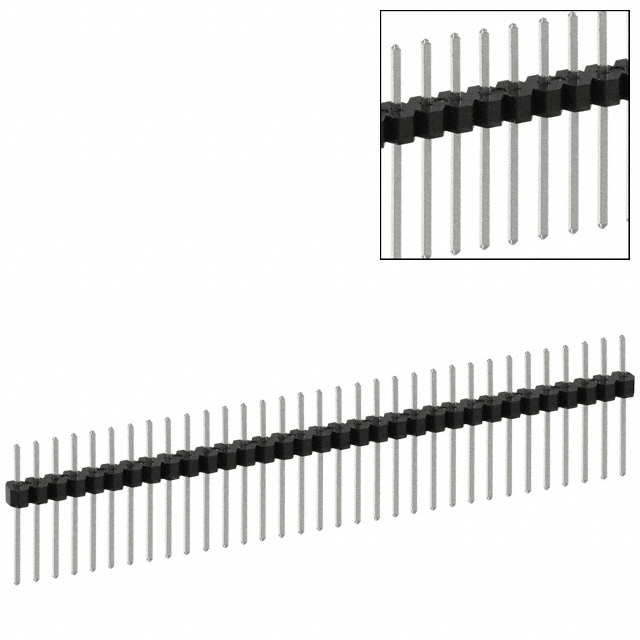

Sullins Connector Solutions PEC33SADN	2.54 µm	100 µin		Black	UL94 V-0						-65 ░C	125 °C	10.67 mm	0.42 in	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm			33	1	19.05 mm	0.75 in

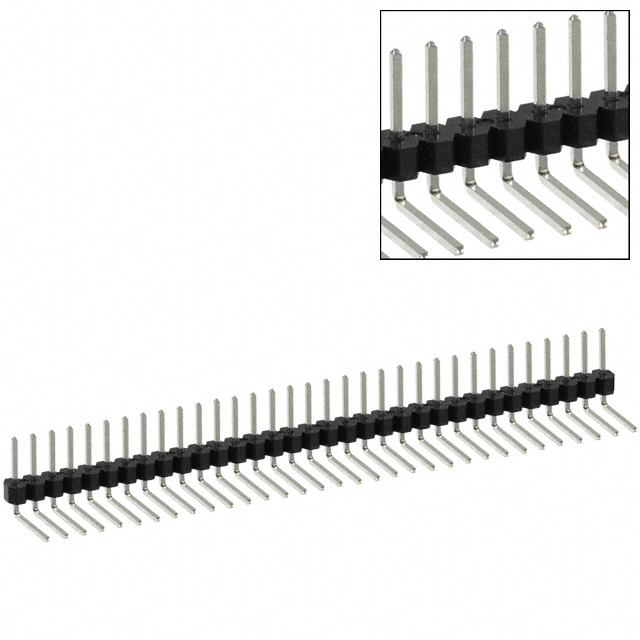

Sullins Connector Solutions PEC33SBCN	2.54 µm	100 µin		Black	UL94 V-0						-65 ░C	125 °C	7.62 mm	0.3 in	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.14 in	3.56 mm	Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm			33	1

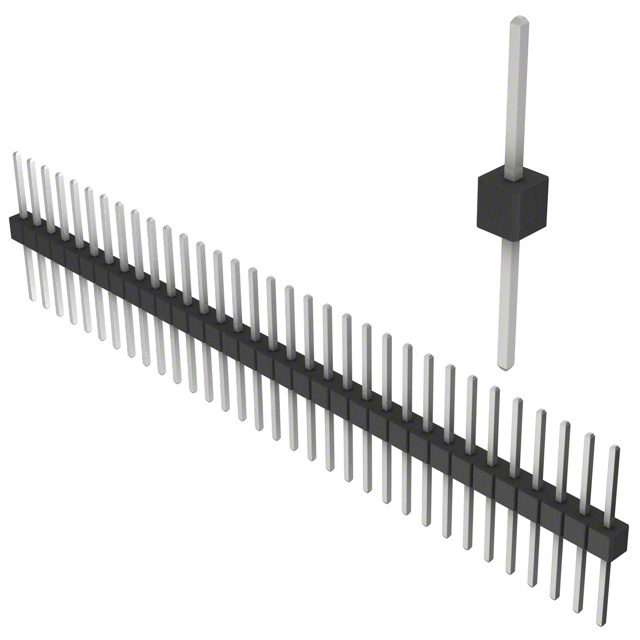

Sullins Connector Solutions PEC33SFCN	2.54 µm	100 µin		Black	UL94 V-0			18.75 mm			-65 ░C	125 °C	8.13 mm	0.32 in	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.1 in	2.54 mm	Board to Board Cable	Solder	0.318 in	8.08 mm	Push-Pull	Header Breakaway	Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm			33	1			0.738 in

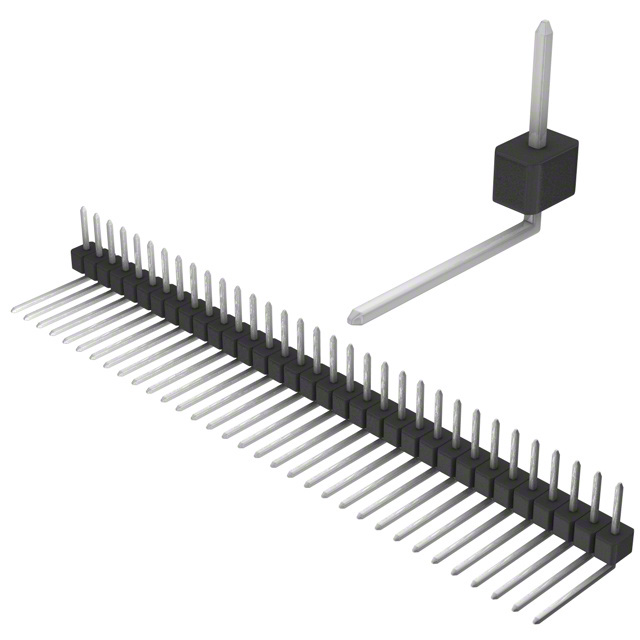

Sullins Connector Solutions PEC33SBDN	2.54 µm	100 µin		Black	UL94 V-0						-65 ░C	125 °C	10.16 mm	0.4 in	Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.14 in	3.56 mm	Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm			33	1

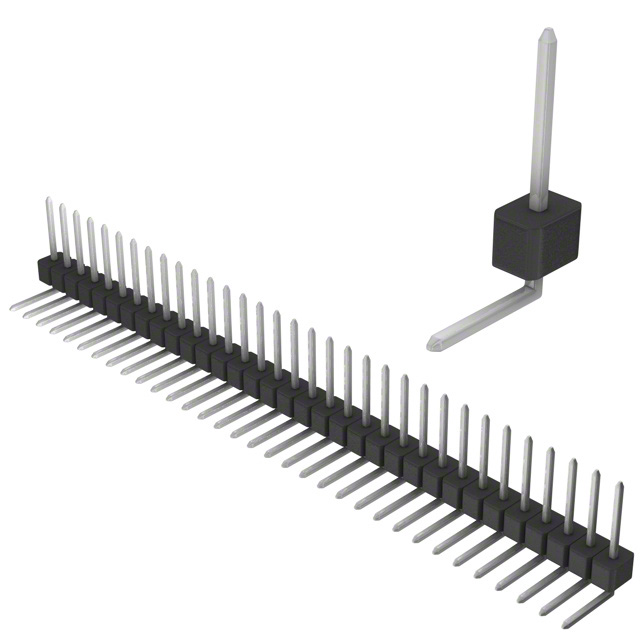

Sullins Connector Solutions PEC33SGBN	2.54 µm	100 µin		Black	UL94 V-0						-65 ░C	125 °C			Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze	0.14 in	3.56 mm	Board to Board Cable	Solder	0.318 in	8.08 mm	Push-Pull	Header Breakaway	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm	5.08 mm	0.2 "	33	1
Sullins Connector Solutions PEC33DBBN	2.54 µm	100 µin	2	Black	UL94 V-0	66			0.1 in	2.54 mm	-65 ░C	125 °C			Square	0.1 "	2.54 mm	Male Pin	Unshrouded	3 A	All	Phosphor Bronze			Board to Board Cable	Solder	0.23 in	5.84 mm	Push-Pull	Header Breakaway	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Tin	100 çin	2.54 çm	5.08 mm	0.2 "						6.1 mm	0.24 in
