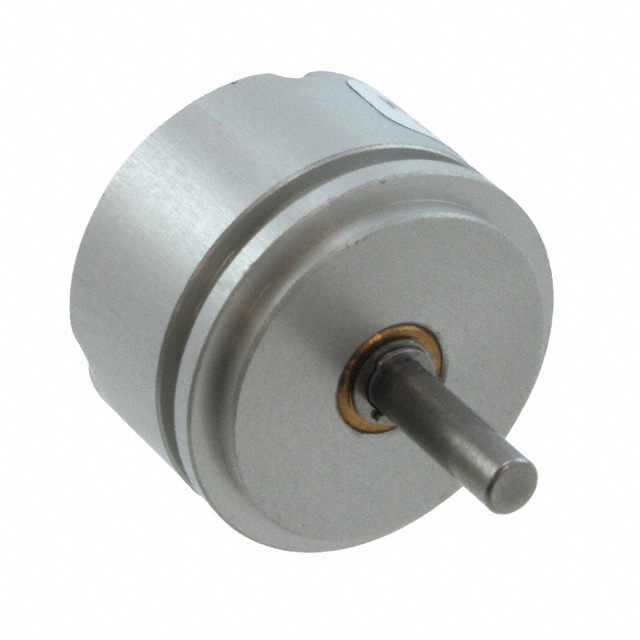

6539S Series
Manufacturer: Bourns Inc.
Beta
⌘K
POT 20K OHM 1W PLASTIC LINEAR
| Part | Taper | Tolerance | Mounting Type | Power (Watts) | Adjustment Type | Built in Switch | Rotation | Resistance (Ohms) | Termination Style | Size - Body [diameter] | Size - Body [diameter] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Gangs | Actuator Length [x] | Actuator Length [x] | Number of Turns | Resistive Material | Temperature Coefficient | Actuator Type | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Linear | 15 % | Servo Mount | 1 W | User Defined | None | Continuous | 20 kOhms | Solder Turret | 22.23 mm | 0.875 " | 0.1248 in | 3.17 mm | 1 | 12.7 mm | 0.5 in | 1 | Conductive Plastic | 500 ppm/°C | Round | |
Bourns Inc. | Linear | 15 % | Servo Mount | 1 W | User Defined | None | Continuous | Solder Turret | 22.23 mm | 0.875 " | 0.1248 in | 3.17 mm | 1 | 12.7 mm | 0.5 in | 1 | Conductive Plastic | 500 ppm/°C | Round | 1k | |
Bourns Inc. | Linear | 15 % | Servo Mount | 1 W | User Defined | None | Continuous | 5 kOhms | Solder Turret | 22.23 mm | 0.875 " | 0.1248 in | 3.17 mm | 1 | 12.7 mm | 0.5 in | 1 | Conductive Plastic | 500 ppm/°C | Round |
