327960 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

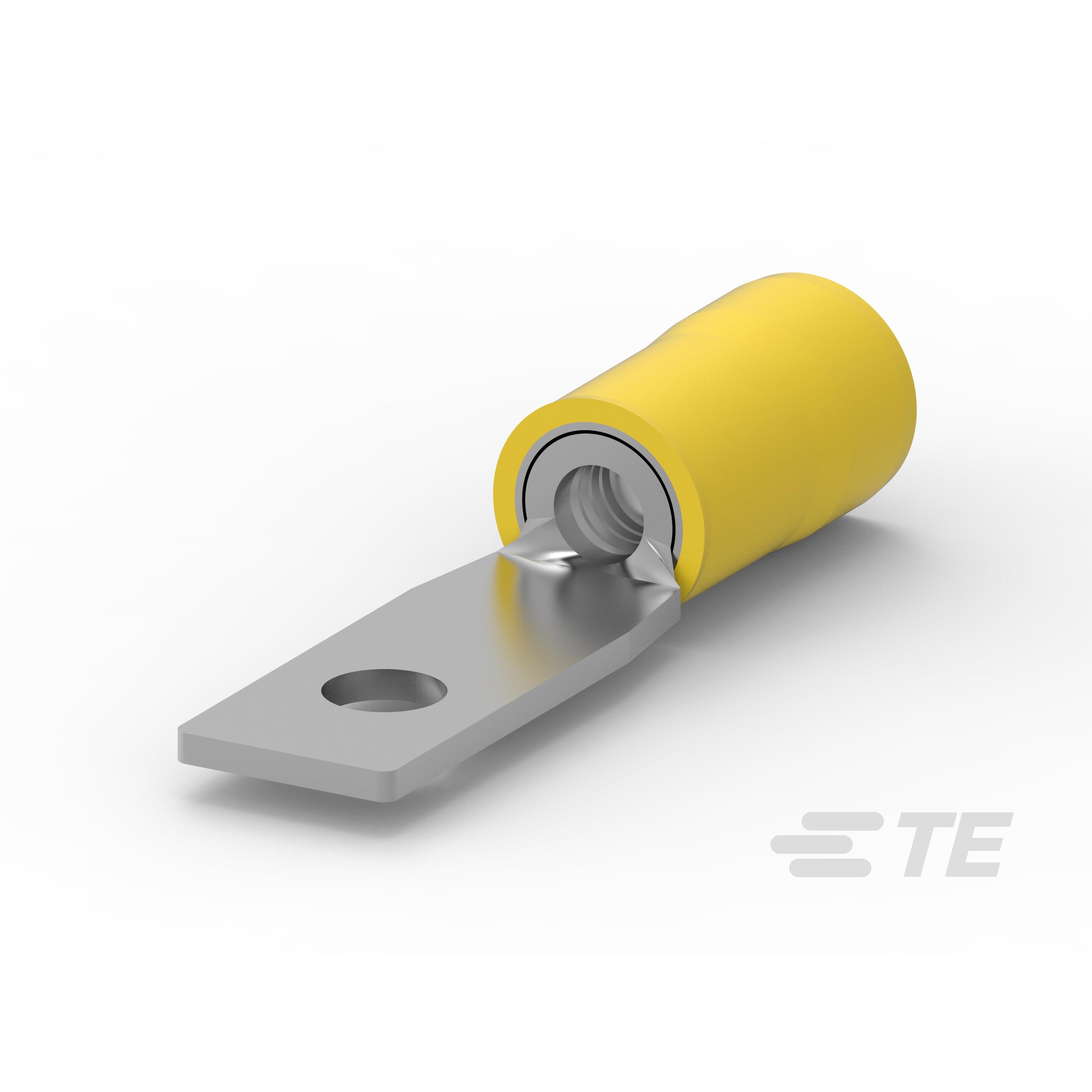

CONN TERM RECT TONG 10-12 AWG #6
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Terminal Style | Length - Overall [x] | Length - Overall [x] | Insulation | Features | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Contact Finish | Termination | Width - Outer Edges [x] | Width - Outer Edges [x] | Color | Mounting Type | Terminal Type | Tab Thickness | Tab Thickness | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 AWG | 10 AWG | 6 Stud | Single Stud Hole | 30.56 mm | 1.203 in | Insulated | Serrated Termination | 0.145 in | 3.68 mm | Tin | Crimp | 0.237 in | 6.02 mm | Yellow | Free Hanging (In-Line) | Rectangular Tongue | 1.02 mm | 0.04 in | Copper |
